Toyota 514210 — WIRELESS DOOR LOCK

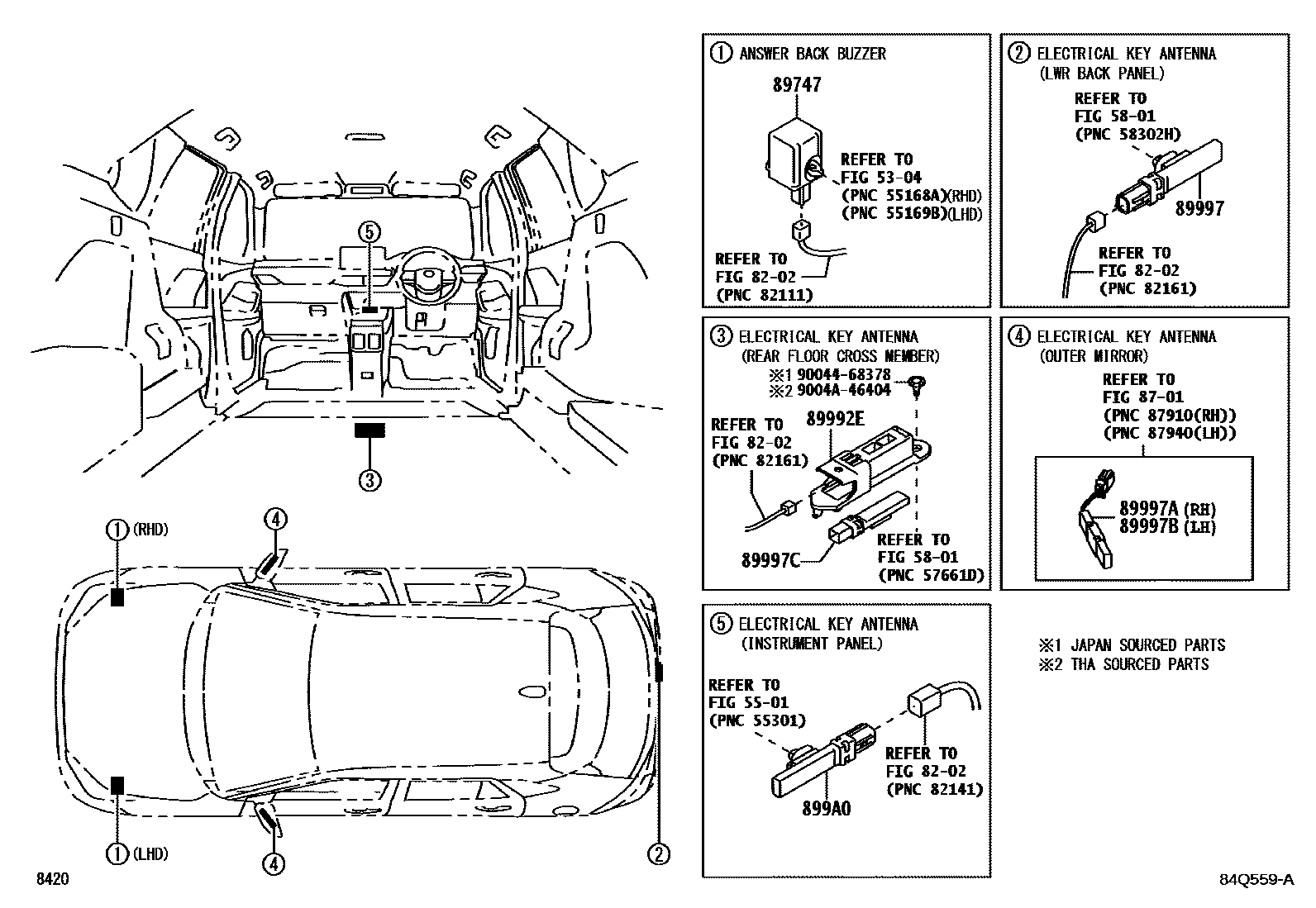

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89747BUZZER, WIRELESS DOOR LOCK

89992ECASE, LESS OSCILLATOR ELECTRICAL KEY

89997ANTENNA, ELECTRICAL KEY

89997AANTENNA, ELECTRICAL KEY, NO.2

89997BANTENNA, ELECTRICAL KEY, NO.3

89997CANTENNA, ELECTRICAL KEY, NO.4

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

9004468378

9004A46404

14 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota 514210

This section contains 14 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota 514210. Key components include: FRONT FENDER APRON & DASH PANEL, INSTRUMENT PANEL & GLOVE COMPARTMENT, FLOOR PAN & LOWER BACK PANEL, WIRING & CLAMP, MIRROR.
