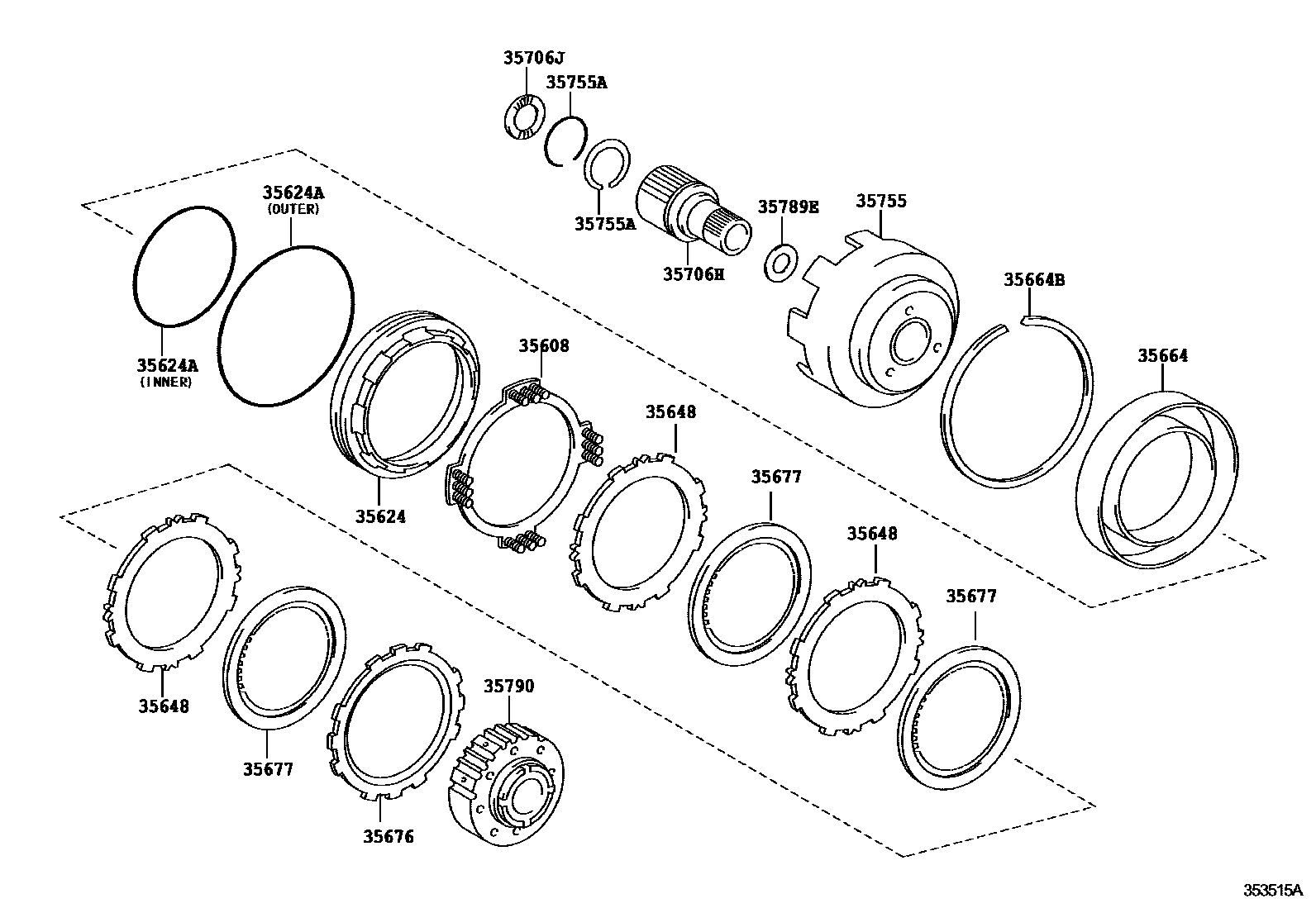

Toyota VOLTZ 171 — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35624ARING, O (FOR 2ND BRAKE PISTON)
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
14 parts on this diagram · 2 diagrams in section
CENTER SUPPORT & PLANETARY SUN GEAR (ATM) for Toyota VOLTZ 171
This section contains 24 genuine Toyota parts for the CENTER SUPPORT & PLANETARY SUN GEAR (ATM) system of the Toyota VOLTZ 171. Key components include: SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN, PISTON, 2ND BRAKE, RING, O (FOR 2ND BRAKE PISTON), RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT), PLATE, CLUTCH (FOR 2ND BRAKE).
