Toyota 675460 — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17444BSPACER, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
9010508488
90105A0360
9010910182
90109A0064
90177A0021
9050135037
90501A0005
18 parts on this diagram · 2 diagrams in section

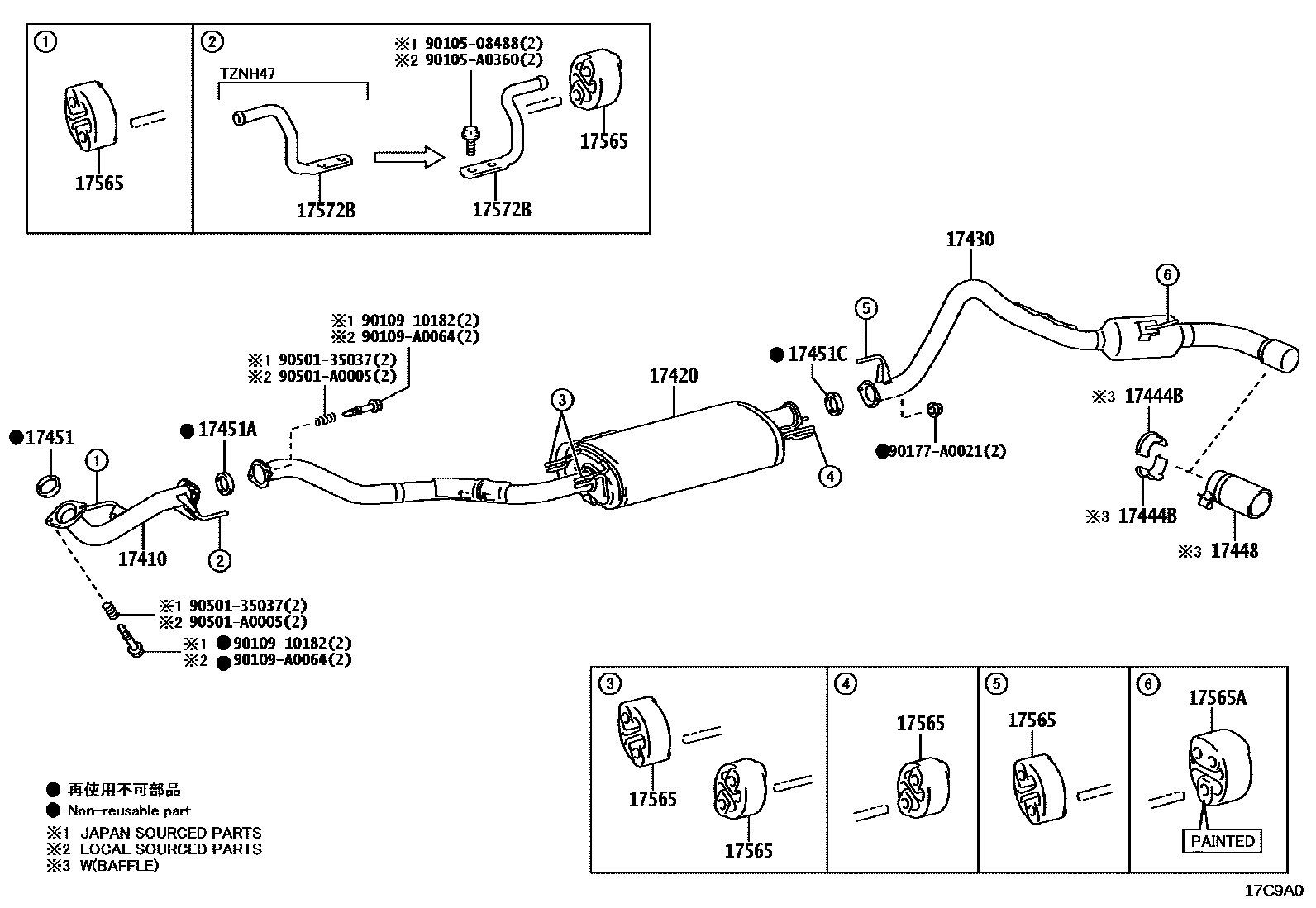

EXHAUST PIPE for Toyota 675460
This section contains 19 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 675460. Key components include: PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, CENTER, PIPE ASSY, EXHAUST, TAIL, SPACER, EXHAUST PIPE, BAFFLE, TAILPIPE.
