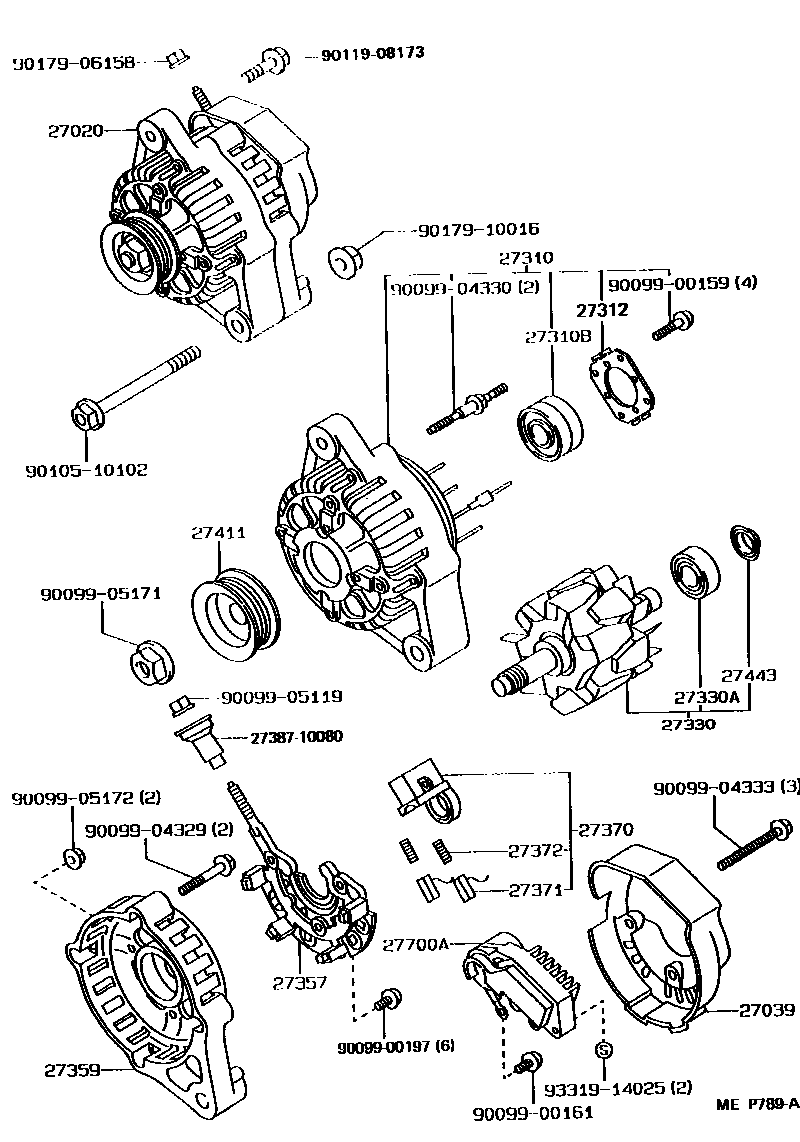

Toyota STARLET 121 — ALTERNATOR
27020ALTERNATOR ASSY
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27372SPRING, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2738710080INSULATOR, TERMINAL
9009900159
9009900161
9009900197
9009904329
9009904330
9009904333
9009905119
9009905171
9009905172
9010510102
9011908173
9017906158
9017910016
9331914025
30 parts on this diagram · 4 diagrams in section
ALTERNATOR for Toyota STARLET 121
This section contains 47 genuine Toyota parts for the ALTERNATOR system of the Toyota STARLET 121. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
