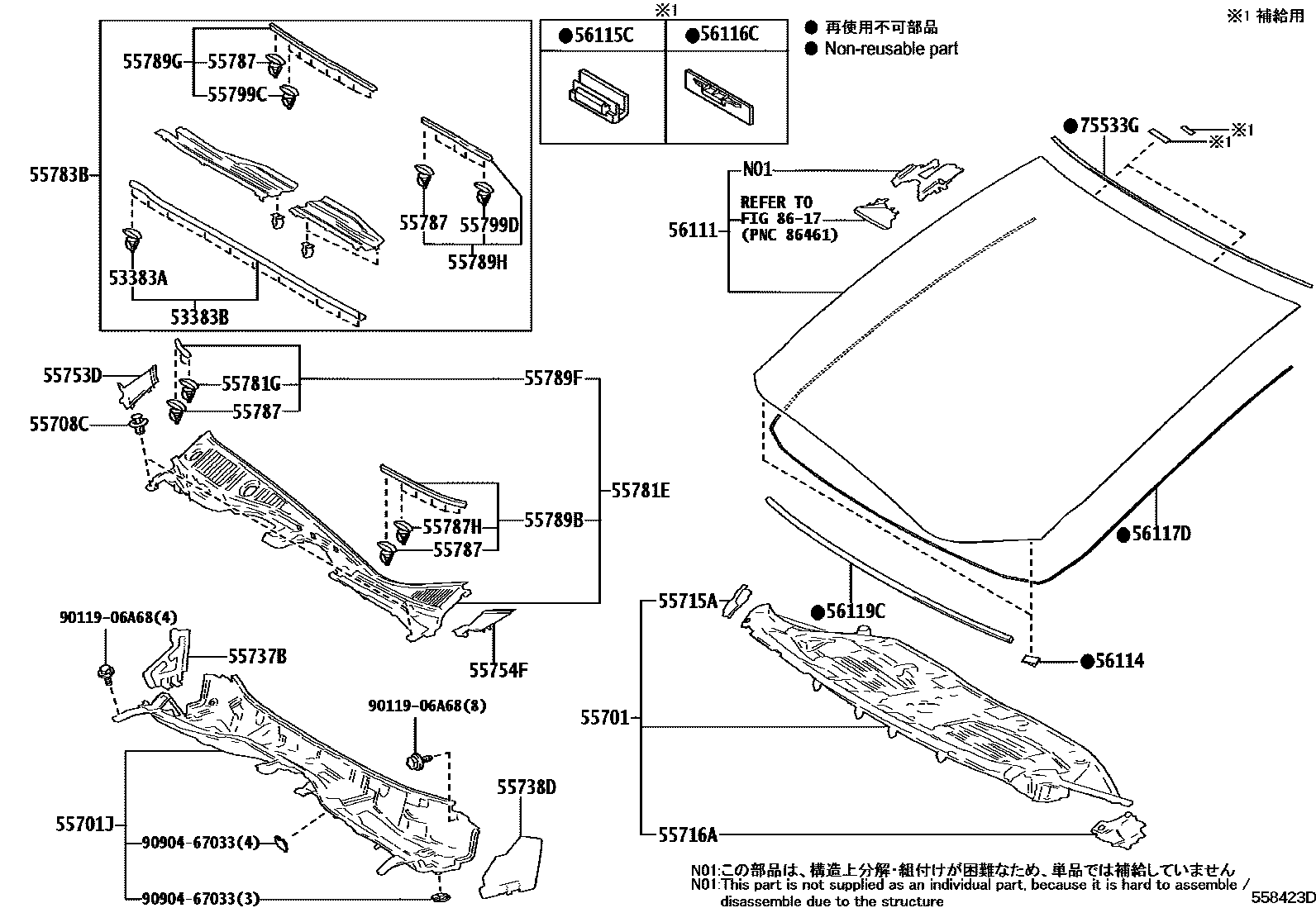

Toyota 713150 — COWL PANEL & WINDSHIELD GLASS
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53383BSEAL, HOOD TO COWL TOP
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708CCLIP, COWL TOP VENTILATOR LOUVER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787HCLIP, COWL TOP PANEL INSULATOR
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789FPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.1
55789GPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.3
55789HPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.4
55799CCLIP, COWL TOP VENTILATOR LOUVER
55799DCLIP, COWL TOP VENTILATOR LOUVER, NO.1
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
56119CSEAL, WINDSHIELD GLASS
75533GMOULDING, WINDSHIELD, OUTSIDE
8617PRE-COLLISION SYSTEM
9011906A68
9090467033
32 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota 713150
This section contains 32 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota 713150. Key components include: CLIP(FOR HOOD TO COWL TOP SEAL), SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP, OUTER, CLIP, COWL TOP VENTILATOR LOUVER.
