Toyota VITZ 112 — MANIFOLD

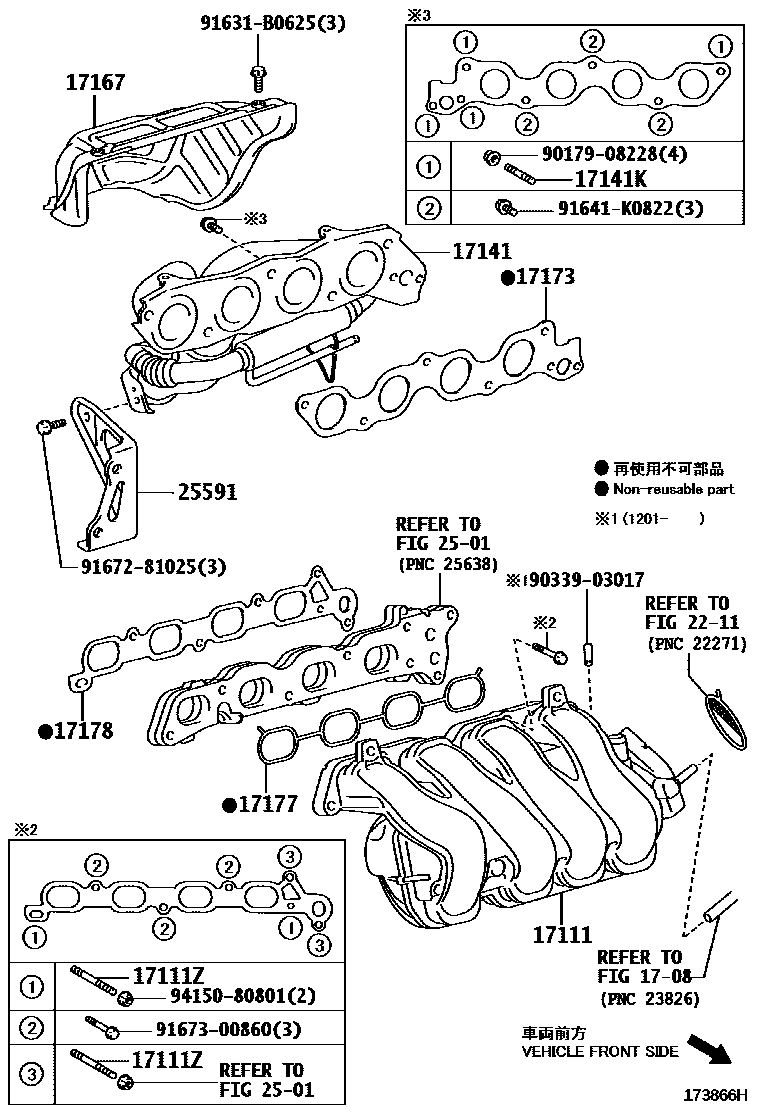

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17141MANIFOLD, EXHAUST

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25591BRACKET, MANIFOLD SUPPORT

9017908228

9033903017

91631B0625

91641K0822

9167281025

9167300860

9415080801

19 parts on this diagram · 2 diagrams in section

MANIFOLD for Toyota VITZ 112

This section contains 23 genuine Toyota parts for the MANIFOLD system of the Toyota VITZ 112. Key components include: VACUUM PIPING, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD), MANIFOLD, EXHAUST, BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD).
