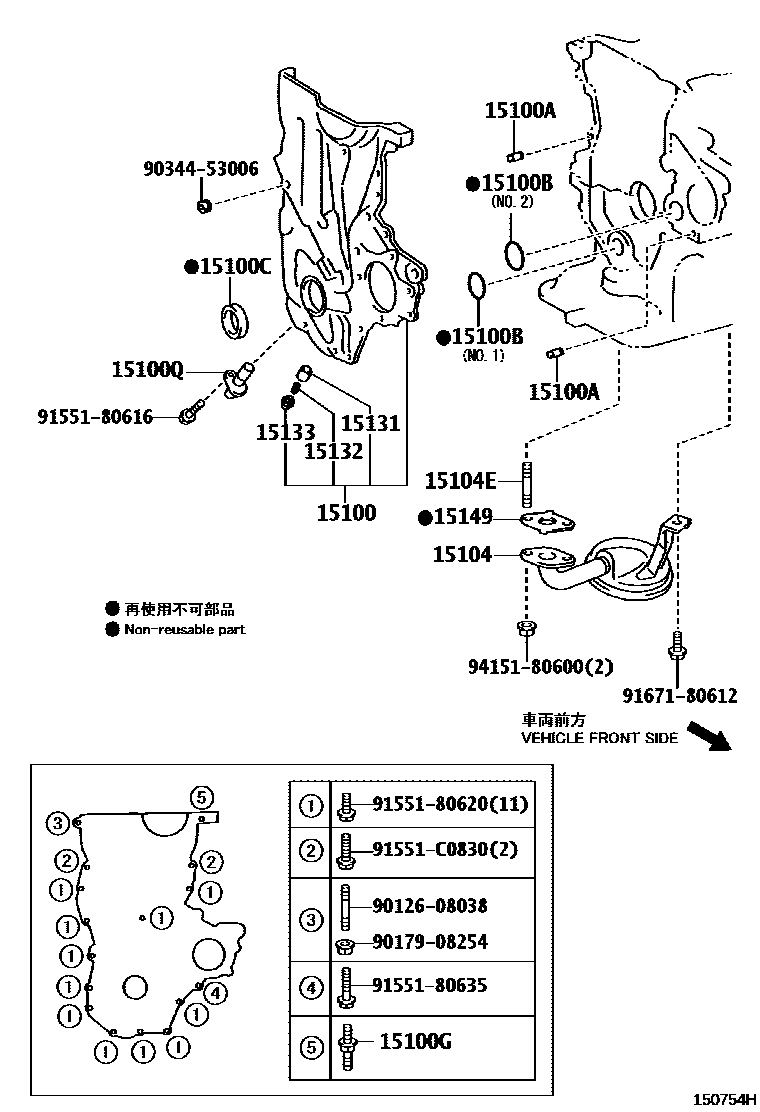

Toyota VITZ 112 — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100GBOLT,STUD(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15104EBOLT, STUD(FOR OIL STRAINER)
15131VALVE, OIL PUMP RELIEF
15149GASKET, OIL STRAINER FLANGE
9012608038
9017908254
9034453006
9155180616
9155180620
9155180635
91551C0830
9167180612
9415180600
21 parts on this diagram · 2 diagrams in section
ENGINE OIL PUMP for Toyota VITZ 112
This section contains 21 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota VITZ 112. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), BOLT,STUD(FOR OIL PUMP).
