Toyota SCION FR-S/86 264 — MIRROR

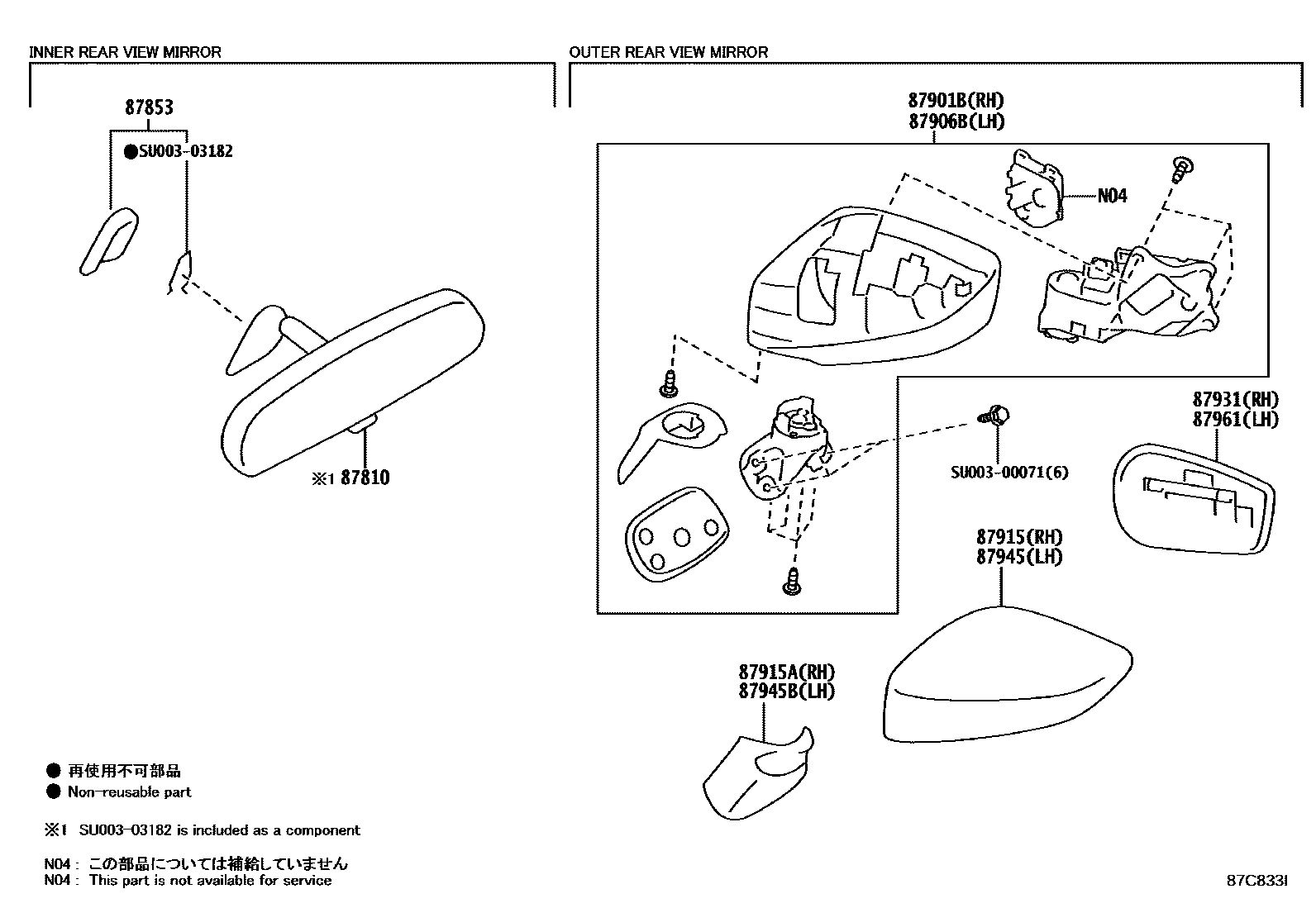

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
SU003-03183
SU003-03184
87853BASE, INNER REAR VIEW MIRROR
SU003-03181
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87915COVER, OUTER MIRROR, RH
SU003-03070
SU003-03071
SU003-03072
SU003-03074
SU003-03075
SU003-03076
SU003-03077
SU003-03090
SU003-06277
SU003-05586
SU003-05587
SU003-04645
SU003-05723
SU003-05990
SU003-05991
87915ACOVER, OUTER MIRROR, RH
87931OUTER MIRROR, RH
SU003-03060
SU003-03062
SU003-03066
SU003-05238
SU003-05240
87945COVER, OUTER MIRROR, LH
SU003-03078
SU003-03079
SU003-03080
SU003-03082
SU003-03083
SU003-03084
SU003-03085
SU003-03091
SU003-06278
SU003-05588
SU003-05589
SU003-04646
SU003-05724
SU003-05992
SU003-05993
87945BCOVER, OUTER MIRROR, LH
87961MIRROR OUTER, LH
SU003-03061
SU003-03063
SU003-03067
SU003-05239
SU003-05241
SU00300071
SU003-00071
SU00303182
SU003-03182

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota SCION FR-S/86 264

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota SCION FR-S/86 264. Key components include: MIRROR ASSY, INNER REAR VIEW, BASE, INNER REAR VIEW MIRROR, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, COVER, OUTER MIRROR, RH.
