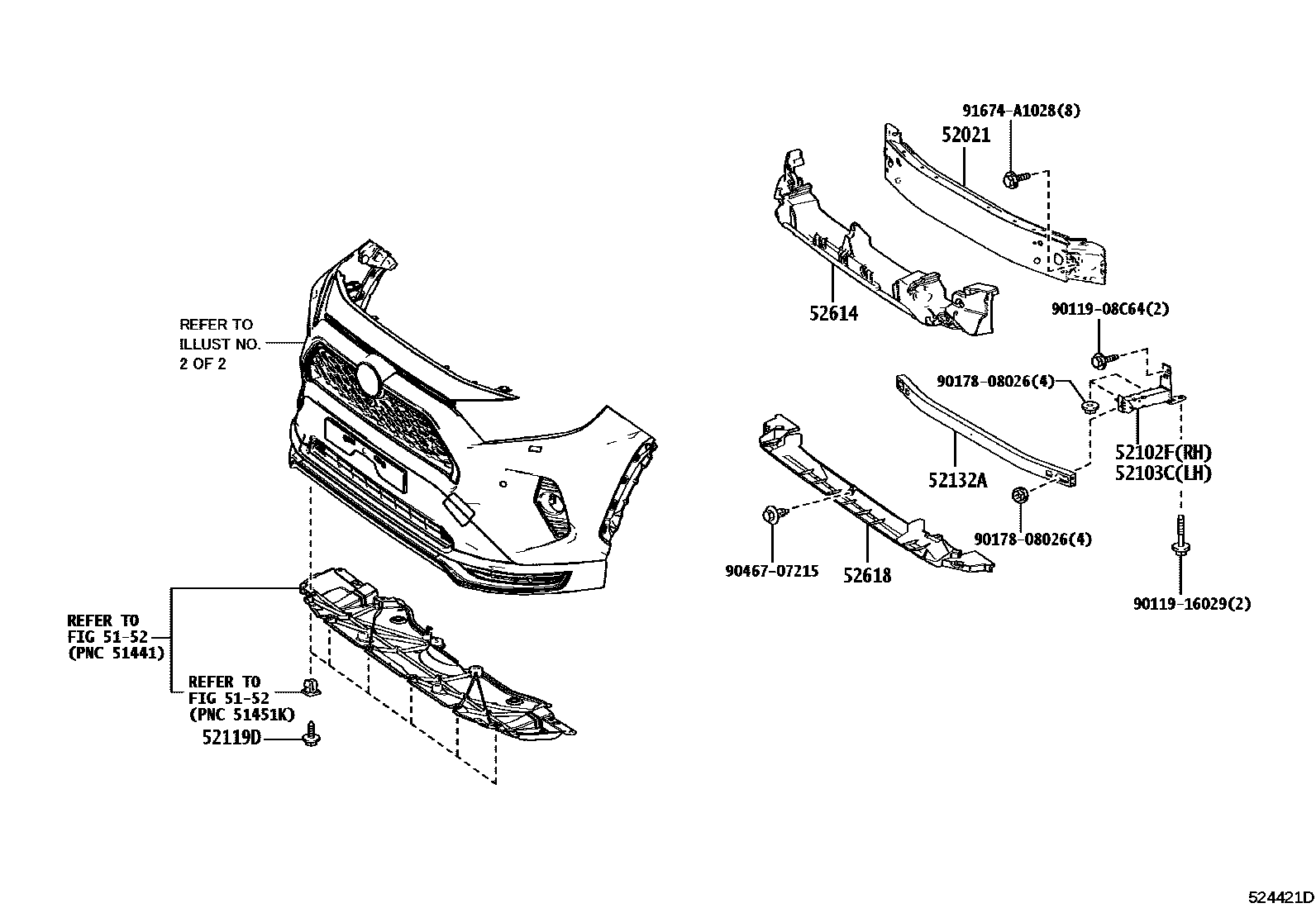

Toyota 666210 — FRONT BUMPER & BUMPER STAY
5152SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH
52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH
52119DSCREW, NO.1
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52618ABSORBER, FRONT BUMPER, LOWER
9011908C64
9011916029
9017808026
9046707215
91674A1028
13 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota 666210
This section contains 43 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 666210. Key components include: GROMMET, NO.1, SUSPENSION CROSSMEMBER & UNDER COVER, REINFORCEMENT SUB-ASSY, FRONT BUMPER, EXTENSION SUB-ASSY, FRONT BUMPER, RH, EXTENSION SUB-ASSY, FRONT BUMPER, LH.
