Toyota 173110 — ENGINE OIL PUMP

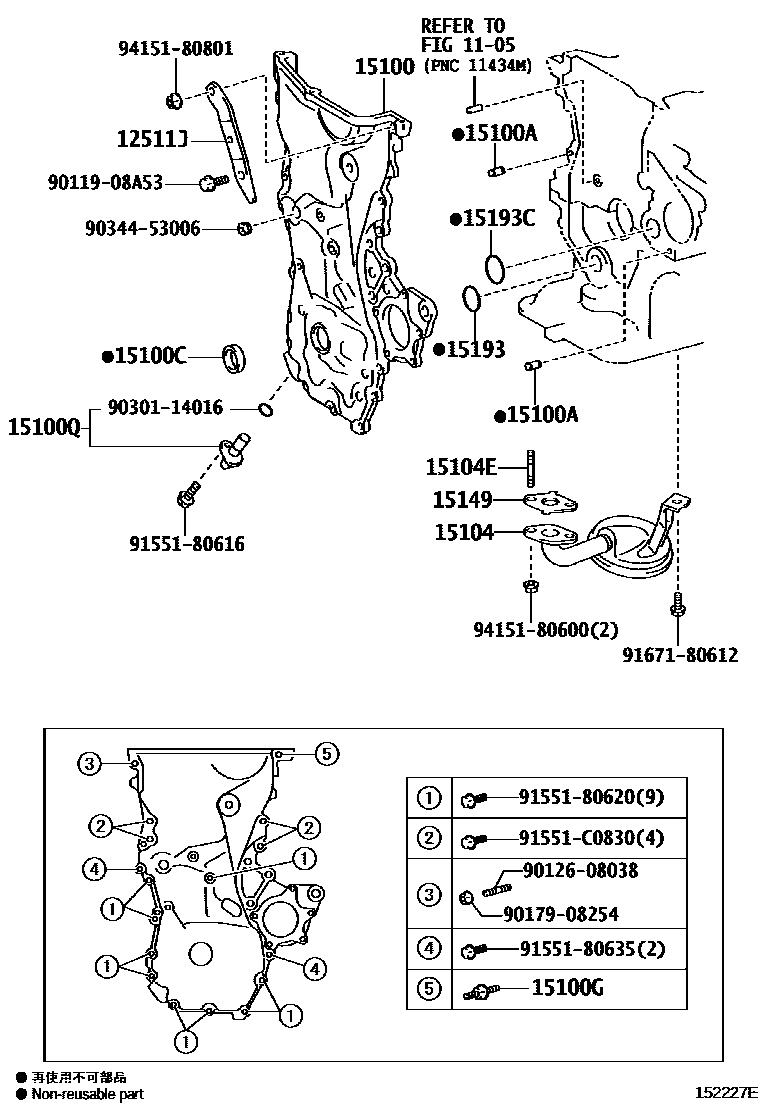

Parts diagram
1105CYLINDER BLOCK
→ Go to FIG 11-05
12511JBRACKET, ALTERNATOR
15100PUMP ASSY, OIL
90253-08003
90311-25033
90311-25034
15100-21062
15100-21072
15100-21080
90919-05083
90919-05087
90109-08283
15100APIN, RING(FOR OIL PUMP SET)
15100CSEAL(FOR OIL PUMP)
15100GBOLT,STUD(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15104STRAINER SUB-ASSY, OIL
90301-22018
90126-06021
15104-21022
15104-47040
15104EBOLT, STUD(FOR OIL STRAINER)
15149GASKET, OIL STRAINER FLANGE
16258-21030
15193GASKET, OIL PUMP
11497-21010
12151-21010
15193CGASKET, OIL PUMP NO.2
9011908A53
90119-08A53
9012608038
90126-08038
9017908254
90179-08254
9030114016
90301-14016
9034453006
90344-53006
9155180616
91551-80616
9155180620
91551-80620
9155180635
91551-80635
91551C0830
91551-C0830
9167180612
91671-80612
9415180600
94151-80600
9415180801
94151-80801

24 parts on this diagram · 5 diagrams in section

ENGINE OIL PUMP for Toyota 173110

This section contains 32 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota 173110. Key components include: CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE, BRACKET, ALTERNATOR, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET).
