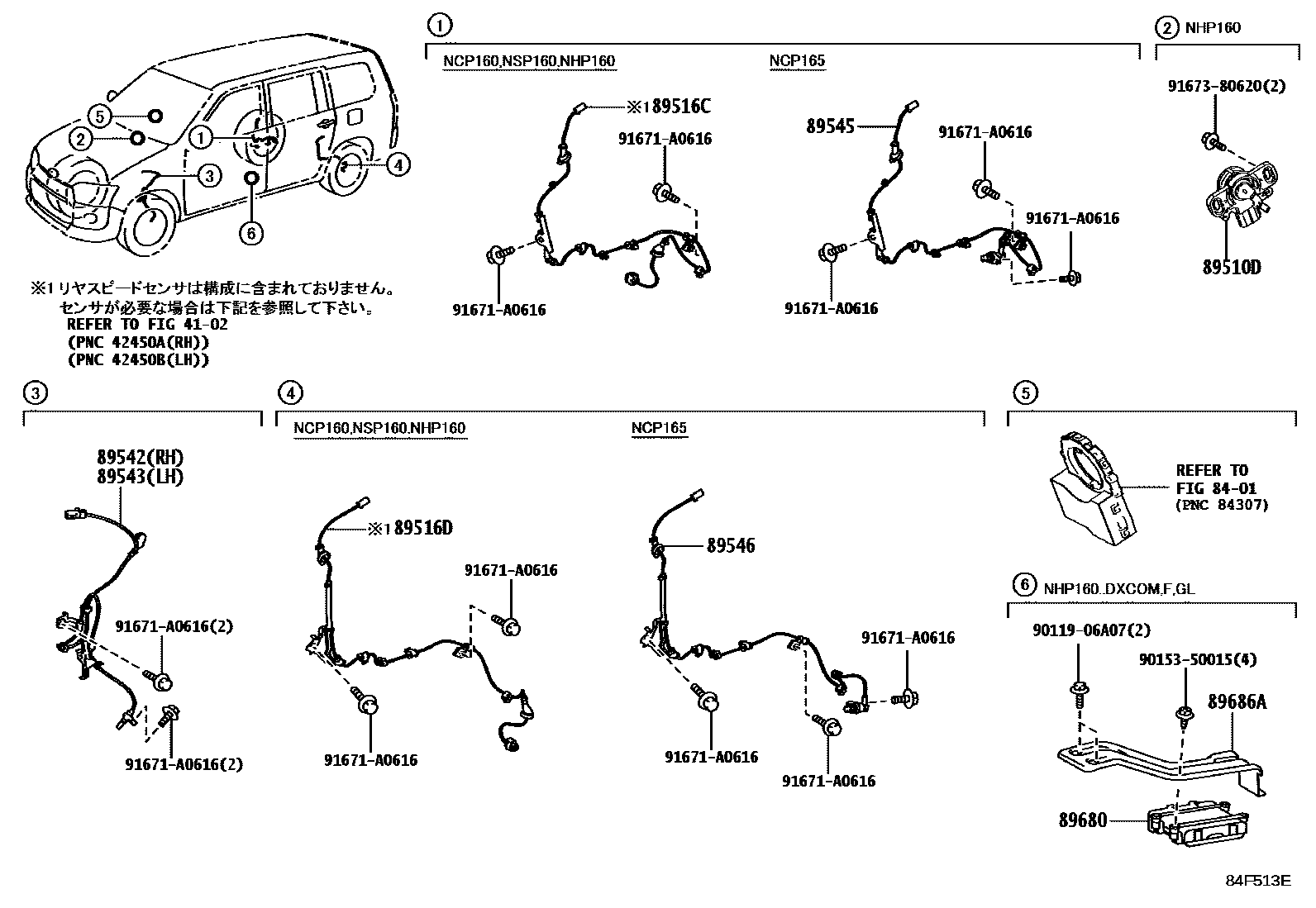

Toyota 173110 — ABS & VSC
4102REAR AXLE SHAFT & HUB
8401SWITCH & RELAY & COMPUTER
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
9011906A07
9015350015
91671A0616
9167380620
15 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota 173110
This section contains 15 genuine Toyota parts for the ABS & VSC system of the Toyota 173110. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH.
