Toyota 662250 — REAR COMBINATION LAMP

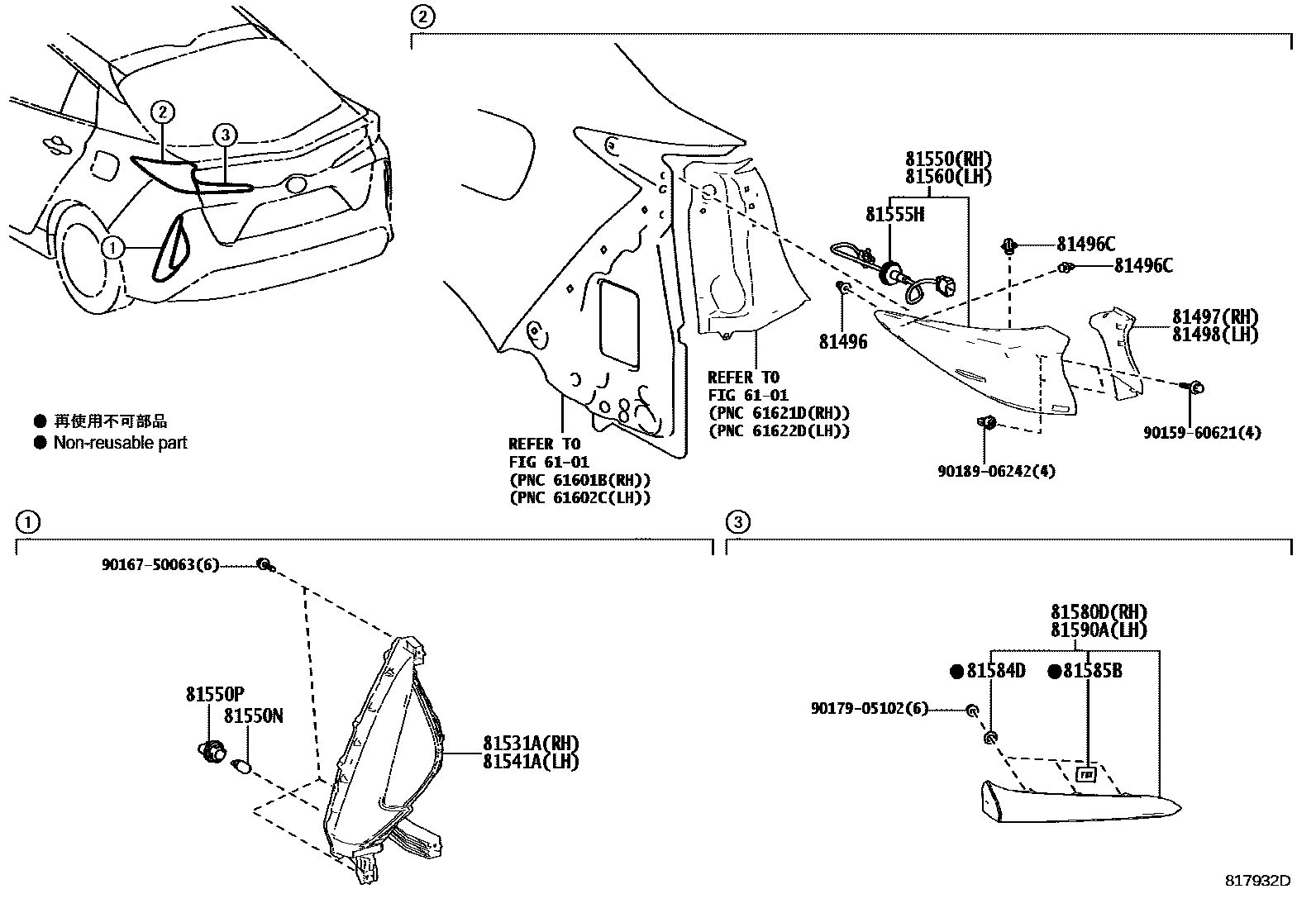

Parts diagram
6101SIDE MEMBER
→ Go to FIG 61-01
81496GUIDE, REAR COMBINATION LAMP
81496-48010
81496-52020
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81497-47030
81498COVER, REAR COMBINATION LAMP, LH
81498-47030
81531ALENS & BODY, REAR TURN SIGNAL LAMP, RH
81541ALENS & BODY, REAR TURN SIGNAL LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
90981-11059
81550-47330
81550-47340
81615-12590
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81555HSOCKET & WIRE, REAR COMBINATION LAMP
81560LAMP ASSY, REAR COMBINATION, LH
81560-47320
81560-47330
81580DLAMP ASSY, REAR, RH
81584DGASKET, REAR LAMP
81585BPACKING, REAR CONBINATION
81590ALAMP ASSY, REAR, LH
9015960621
90159-60621
9016750063
90167-50063
9017905102
90179-05102
9018906242
90189-06242

20 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota 662250

This section contains 20 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota 662250. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, GUIDE, REAR COMBINATION LAMP, NO.2, COVER, REAR COMBINATION LAMP, RH, COVER, REAR COMBINATION LAMP, LH.
