Toyota 136220 — CYLINDER BLOCK

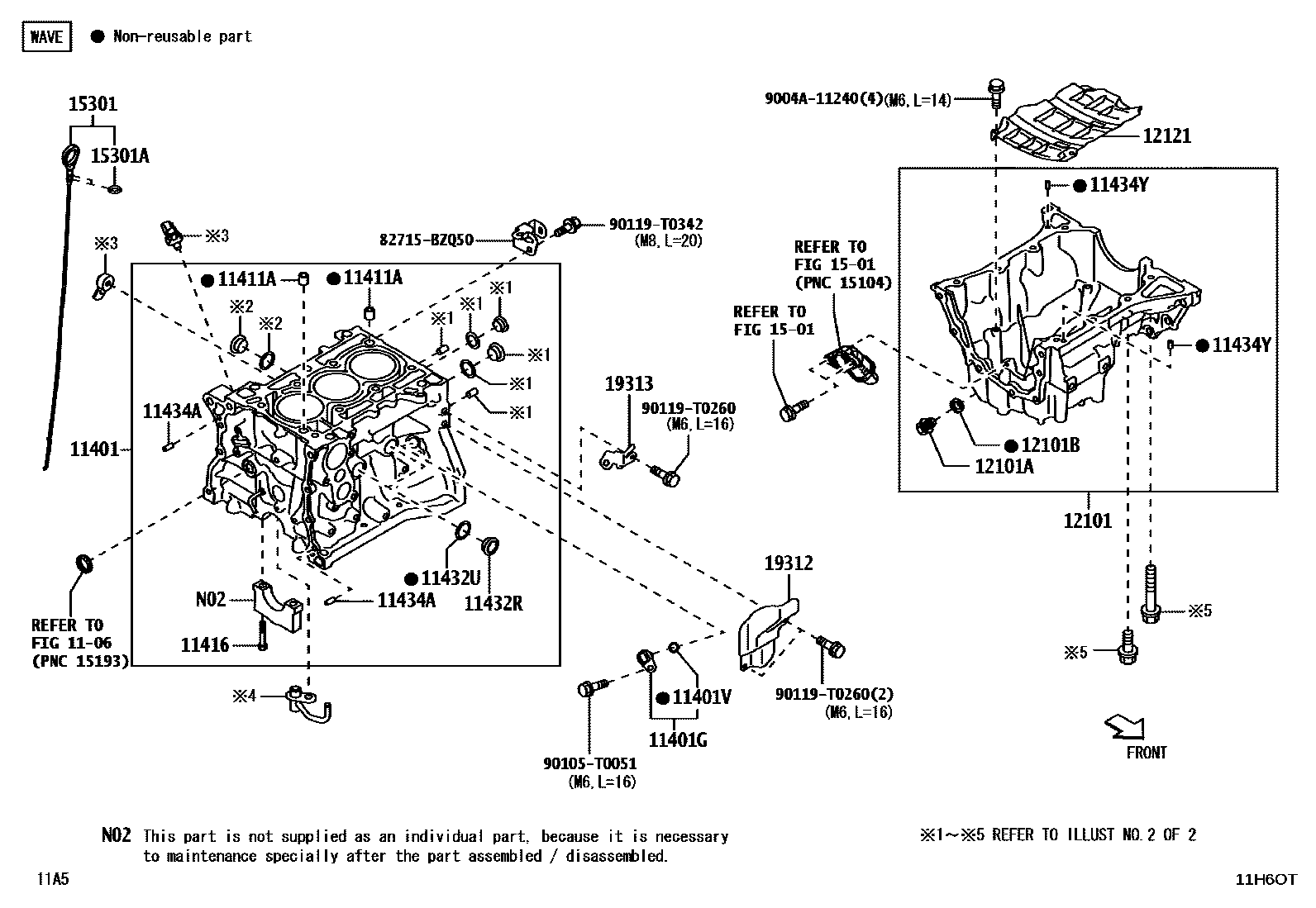

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

11401BLOCK SUB-ASSY, CYLINDER

11401GSENSOR, CRANK POSITION

11401VO-RING, CRANK POSITION SENSOR

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

11434YPIN, STRAIGHT(FOR OIL PAN)

12101PAN SUB-ASSY, OIL

12101APLUG(FOR OIL PAN DRAIN)

12101BGASKET(FOR OIL PAN DRAIN PLUG)

12121PLATE, OIL PAN BAFFLE, NO.1

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

15301ARING, O(FOR OIL LEVEL GAGE)

19312PROTECTOR, CRANK POSITION SENSOR

19313BRACKET, CRANK POSITION SENSOR HARNESS

82715BZQ50BRACKET,WIRING HARNESS CLAMP

9004A11240

90105T0051

90119T0260

90119T0342

24 parts on this diagram · 6 diagrams in section

CYLINDER BLOCK for Toyota 136220

This section contains 46 genuine Toyota parts for the CYLINDER BLOCK system of the Toyota 136220. Key components include: TIMING GEAR COVER & REAR END PLATE, BLOCK SUB-ASSY, CYLINDER, SENSOR, CRANK POSITION, O-RING, CRANK POSITION SENSOR, PIN, RING(FOR CYLINDER BLOCK NO.1 ).
