Toyota 136220 — COWL PANEL & WINDSHIELD GLASS

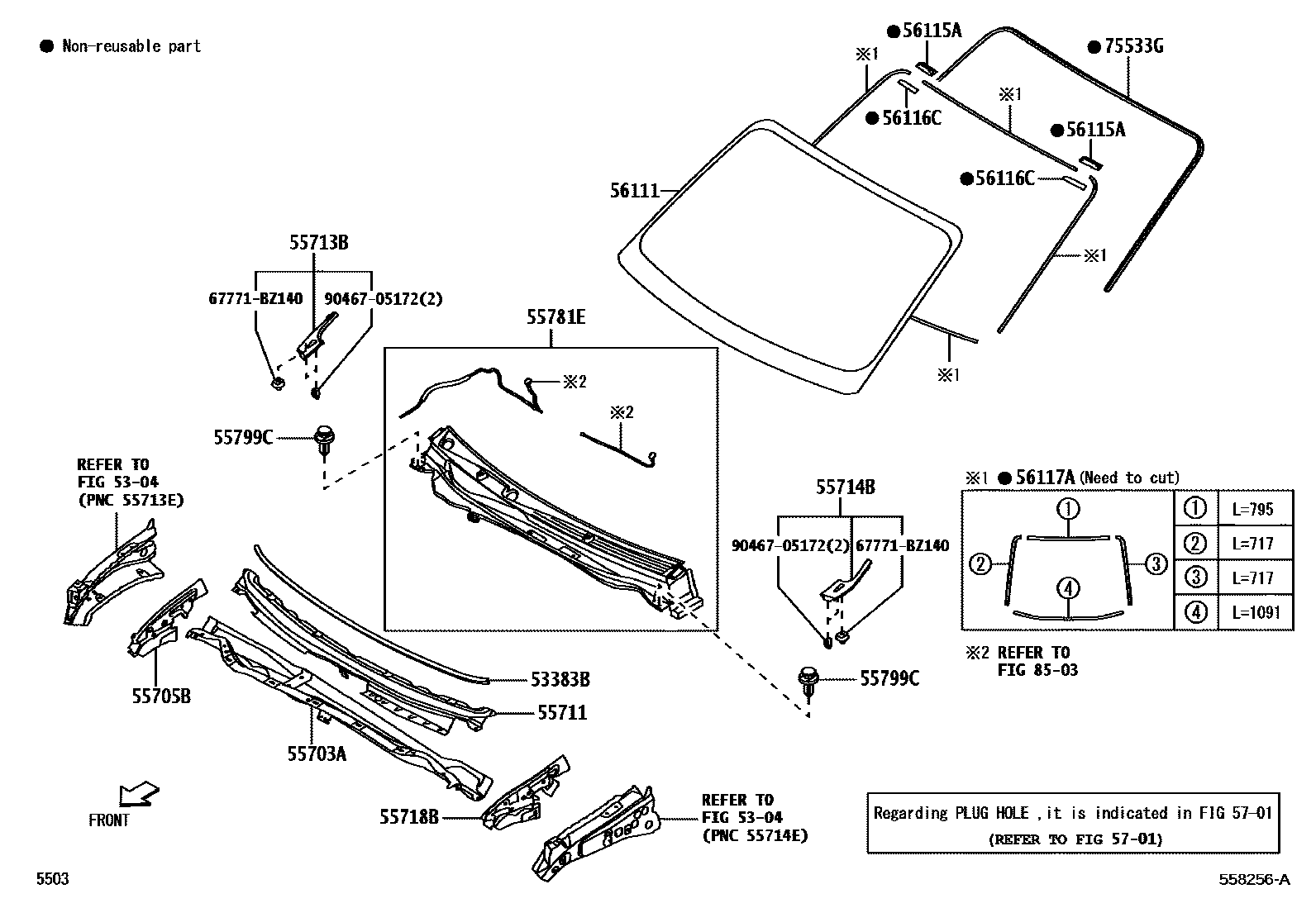

Parts diagram
5304FRONT FENDER APRON & DASH PANEL
→ Go to FIG 53-04
53383BSEAL, HOOD TO COWL TOP
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55711PANEL, COWL TOP, OUTER
55701-BZ320
55701-BZ330
55713BCOVER, COWL SIDE PANEL HOLE, RH
55714BCOVER, COWL SIDE PANEL HOLE, LH
55718BPANEL, COWL TOP SIDE, INNER LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56111-BZD10
56111-BZG10
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
5701HOLE PLUG
→ Go to FIG 57-01
75533GMOULDING, WINDSHIELD, OUTSIDE
8503WINDSHIELD WASHER
→ Go to FIG 85-03
67771BZ140WEATHERSTRIP, BACK DOOR TRIM, RH
67771-BZ140
9046705172
90467-05172

19 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota 136220

This section contains 19 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota 136220. Key components include: FRONT FENDER APRON & DASH PANEL, SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL TOP, INNER, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL, COWL TOP, OUTER.
