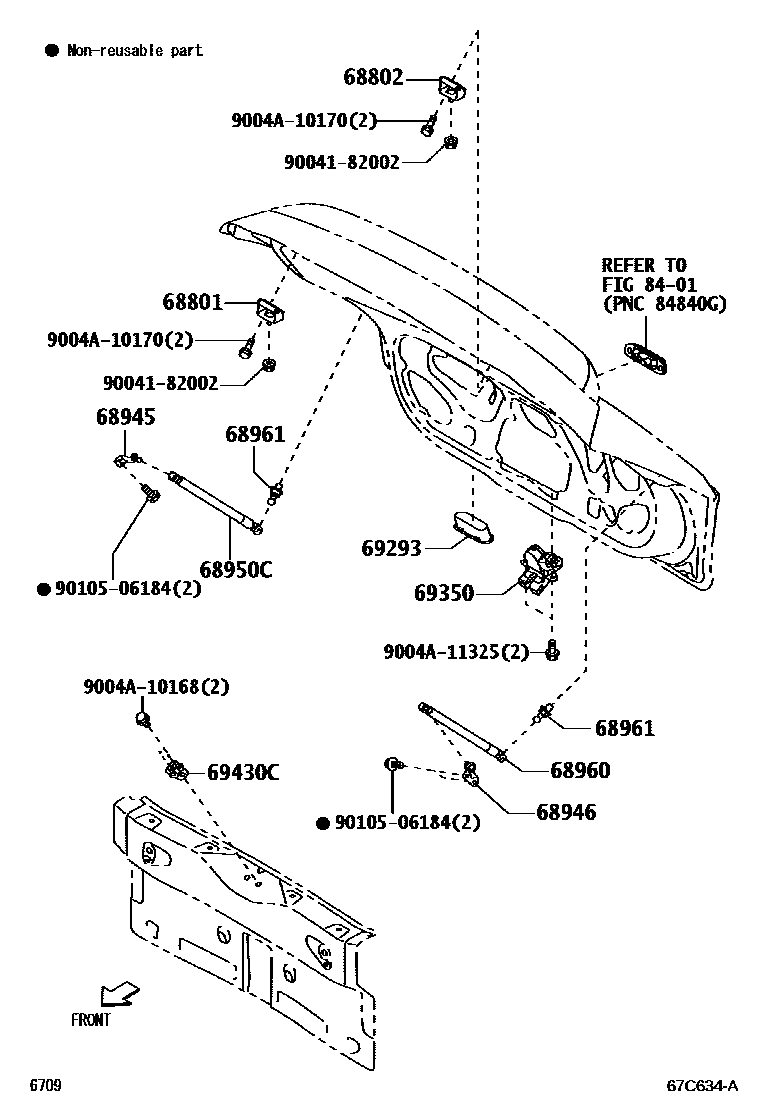

Toyota 136220 — BACK DOOR LOCK & HANDLE
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68802HINGE SUB-ASSY, BACK DOOR, UPPER LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68961BOLT, BACK DOOR STAY
69293HANDLE, BACK DOOR
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
9004182002
9004A10168
9004A10170
9004A11325
9010506184
16 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota 136220
This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota 136220. Key components include: HINGE SUB-ASSY, BACK DOOR, UPPER RH, HINGE SUB-ASSY, BACK DOOR, UPPER LH, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH.
