Toyota 271150 — FUEL INJECTION SYSTEM

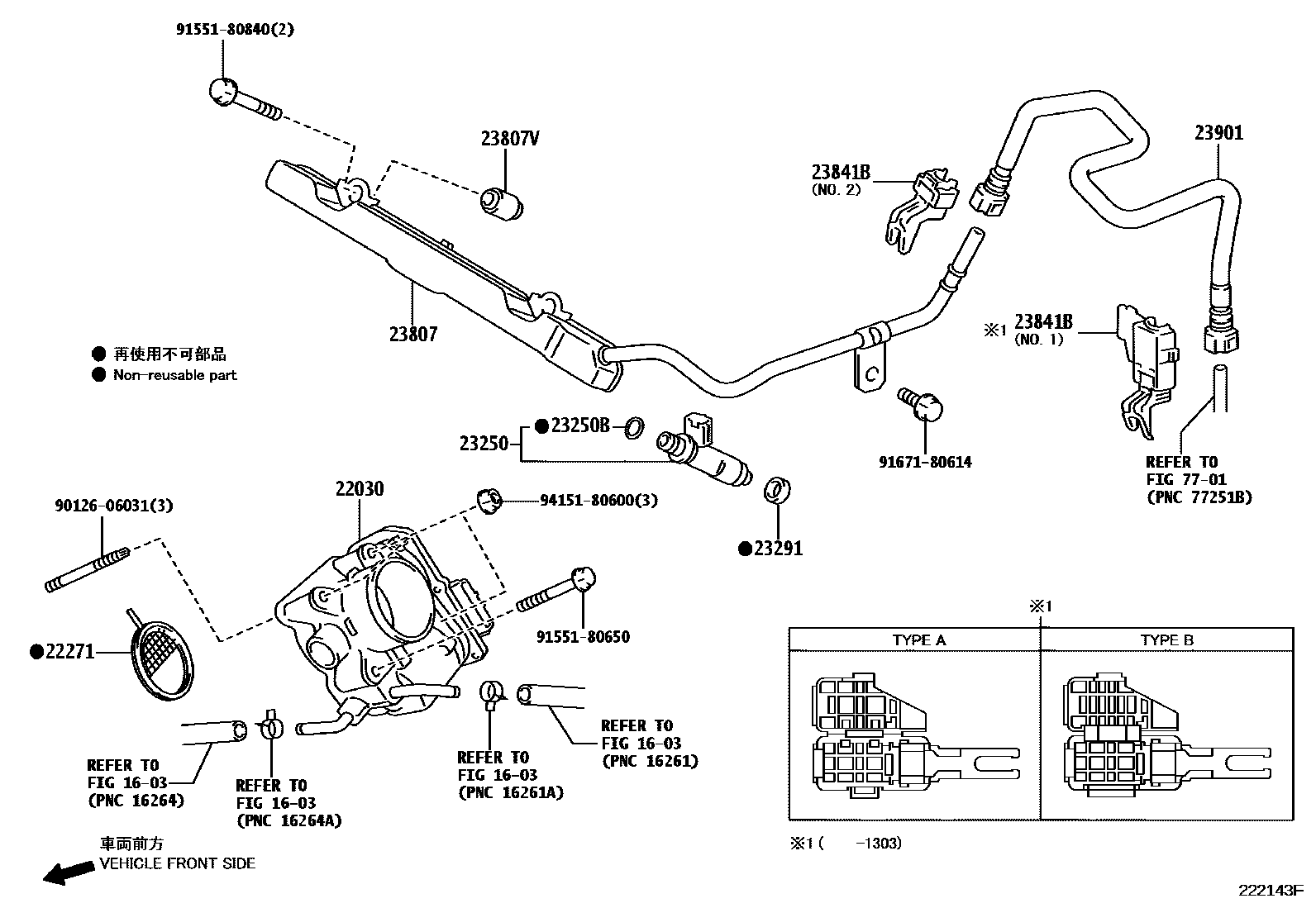

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-21030
22030-21040
22271GASKET, THROTTLE BODY
22271-75031
22271-21060
23250INJECTOR ASSY, FUEL
90301-07037
23209-21040
23209-21100
23209-39145
23209-39146
23209-39235
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
23291-23010
23291-41010
23291-28020
23807PIPE SUB-ASSY, FUEL DELIVERY
23891-21010
23891-37010
23807-21030
23807-21031
23814-37050
23814-37051
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23901TUBE SUB-ASSY, FUEL
23901-37060
23901-37090
23901-21160
7701FUEL TANK & TUBE
→ Go to FIG 77-01
9012606031
90126-06031
9155180650
91551-80650
9155180840
91551-80840
9167180614
91671-80614
9415180600
94151-80600

16 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota 271150

This section contains 29 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota 271150. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY, CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT.
