Toyota 897110 — VENTILATION HOSE

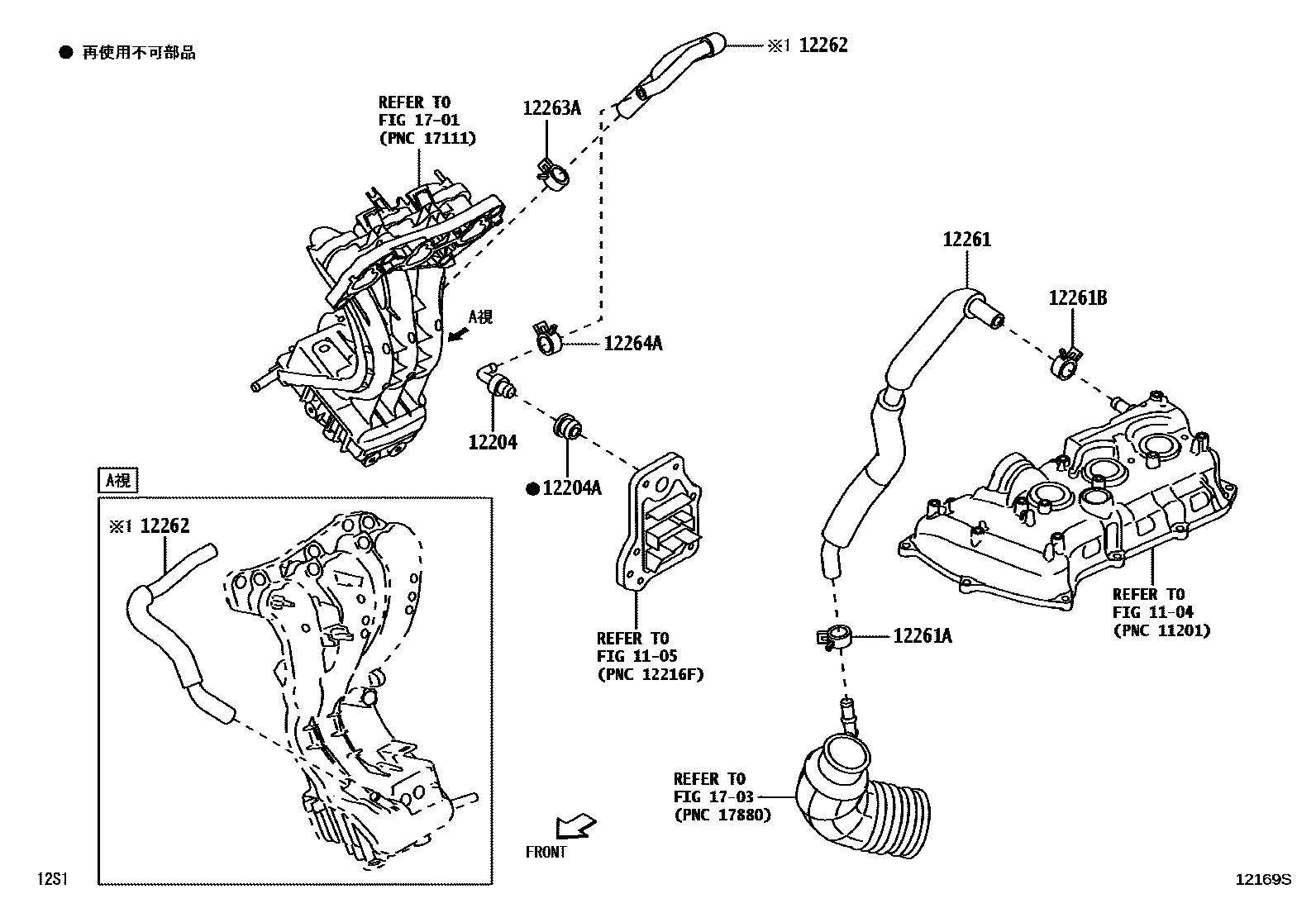

Parts diagram
1104CYLINDER HEAD
→ Go to FIG 11-04
1105CYLINDER BLOCK
→ Go to FIG 11-05
12204VALVE SUB-ASSY, VENTILATION
12204-B2020
90044-80652
12204AGROMMET(FOR VENTILATION SYSTEM)
12261HOSE, VENTILATION
90044-66036
12261-B5040
90044-67240
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12261-B2200
12263ACLIP(FOR VENTILATION HOSE)
12264ACLIP(FOR VENTILATION HOSE)
1701MANIFOLD
→ Go to FIG 17-01
1703AIR CLEANER
→ Go to FIG 17-03

12 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota 897110

This section contains 12 genuine Toyota parts for the VENTILATION HOSE system of the Toyota 897110. Key components include: CYLINDER HEAD, CYLINDER BLOCK, VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), HOSE, VENTILATION.
