Toyota 897110 — MOUNTING

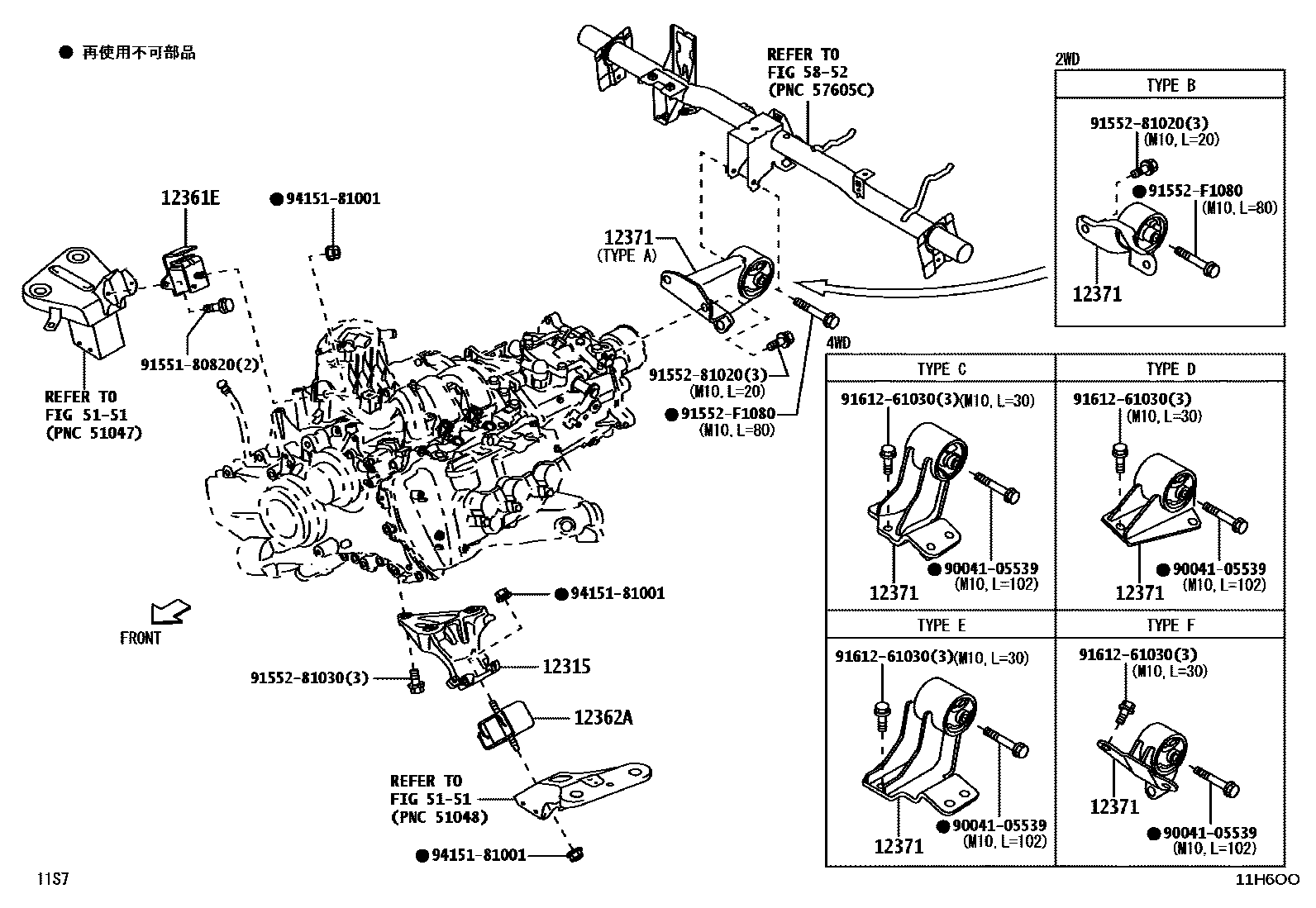

Parts diagram

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

5151FRAME

→ Go to FIG 51-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9004105539

9155180820

9155281020

9155281030

91552F1080

9161261030

9415181001

13 parts on this diagram · 1 diagram in section

MOUNTING for Toyota 897110

This section contains 13 genuine Toyota parts for the MOUNTING system of the Toyota 897110. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT RH, INSULATOR, ENGINE MOUNTING, FRONT LH, INSULATOR, ENGINE MOUNTING, REAR NO.1, FRAME.
