Toyota 897110 — MANIFOLD

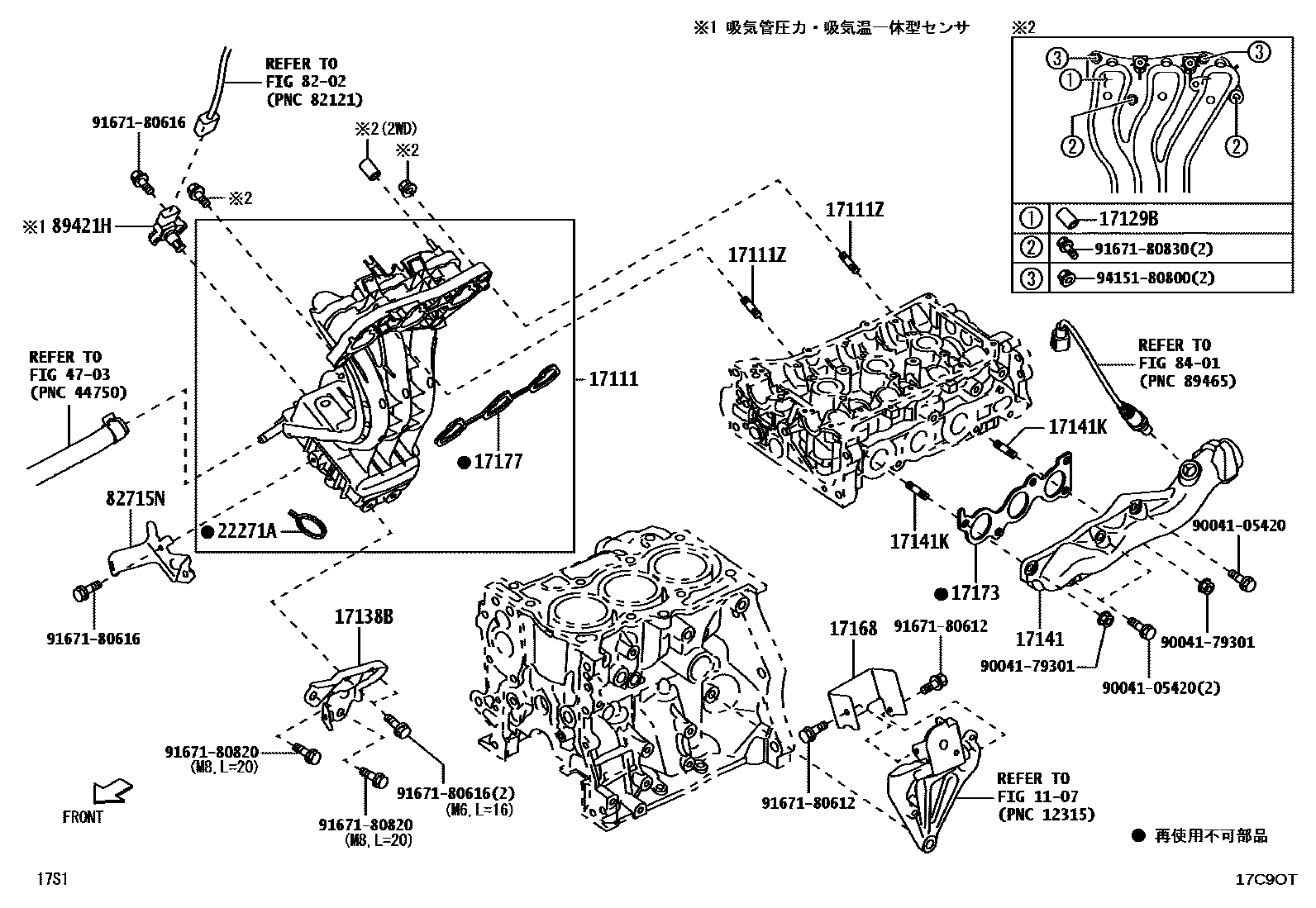

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17129BPLUG

17138BSTAY, INTAKE MANIFOLD

17141MANIFOLD, EXHAUST

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

22271AGASKET, THROTTLE BODY

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

8202WIRING & CLAMP

→ Go to FIG 82-02

82715NBRACKET, WIRING HARNESS CLAMP

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421HSENSOR, VACUUM

9004105420

9004179301

9167180612

9167180616

9167180820

9167180830

9415180800

23 parts on this diagram · 1 diagram in section

MANIFOLD for Toyota 897110

This section contains 23 genuine Toyota parts for the MANIFOLD system of the Toyota 897110. Key components include: MOUNTING, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD), PLUG, STAY, INTAKE MANIFOLD.
