Toyota 897110 — CYLINDER HEAD

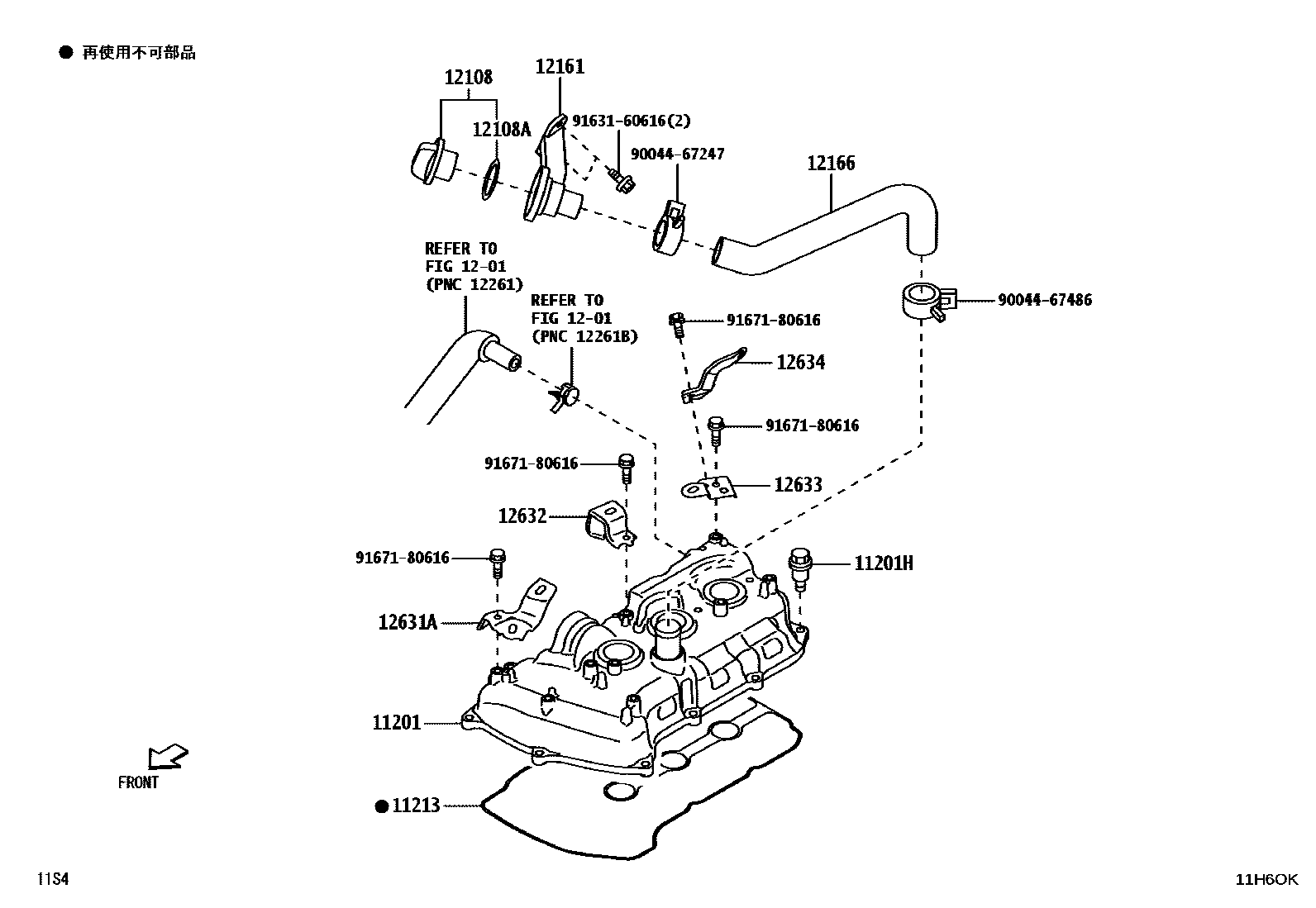

Parts diagram
11201COVER SUB-ASSY, CYLINDER HEAD
11201-B2160
91551-80620
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11213-B2051
1201VENTILATION HOSE
→ Go to FIG 12-01
12108CAP SUB-ASSY, OIL FILLER
12180-97201
12195-87206
12108AGASKET(FOR OIL FILLER CAP)
12161TUBE, OIL FILLER
12161-97501
12166HOSE, OIL FILLER
12186-B5010
12631ABRACKET, ENGINE COVER
12632BRACKET, ENGINE COVER, NO.2
82715-B5850
12633BRACKET, ENGINE COVER, NO.3
82715-B5810
12634BRACKET, ENGINE COVER, NO.4
82715-B5840
9004467247
90044-67247
9004467486
90044-67486
9163160616
91631-60616
9167180616
91671-80616

16 parts on this diagram · 2 diagrams in section

CYLINDER HEAD for Toyota 897110

This section contains 40 genuine Toyota parts for the CYLINDER HEAD system of the Toyota 897110. Key components include: HEAD SUB-ASSY, CYLINDER, BOLT(FOR CYLINDER HEAD SET), WASHER, PLATE(FOR CYLINDER HEAD SET), BOLT, STUD(FOR WATER OUTLET), SENSOR, CAM POSITION.
