Toyota 312140 — SIDE MOULDING

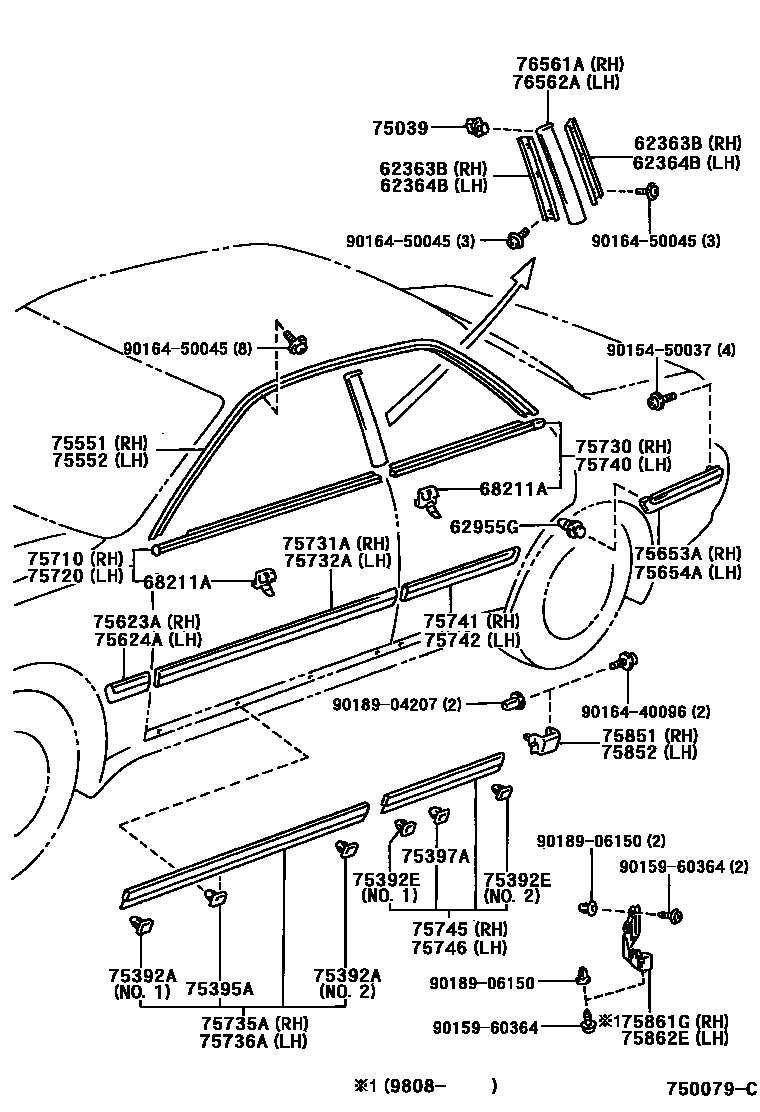

Parts diagram

62363BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH

62364BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH

62955GRETAINER, QUARTER VENT LOUVER

68211ACLIP, DOOR BELT MOULDING

75039CLIP SUB-ASSY, OUTSIDE MOULDING

75392ARETAINER, OUTSIDE MOULDING, NO.1

75392ERETAINER, OUTSIDE MOULDING, NO.1

75395ACLIP, OUTSIDE MOULDING, NO.1

75397ACLIP, OUTSIDE MOULDING, NO.3

75551MOULDING, ROOF DRIP SIDE FINISH, RH

75552MOULDING, ROOF DRIP SIDE FINISH, LH

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

75653AMOULDING, QUARTER, OUTSIDE REAR RH

75654AMOULDING, QUARTER, OUTSIDE REAR LH

75710MOULDING ASSY, FRONT DOOR BELT, RH

75720MOULDING ASSY, FRONT DOOR BELT, LH

75730MOULDING ASSY, REAR DOOR BELT, RH

75731AMOULDING, FRONT DOOR, OUTSIDE RH

75732AMOULDING, FRONT DOOR, OUTSIDE LH

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

75740MOULDING ASSY, REAR DOOR BELT, LH

75741MOULDING, REAR DOOR, OUTSIDE RH

75742MOULDING, REAR DOOR, OUTSIDE LH

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

75851MOULDING, ROCKER PANEL, RH

75852MOULDING, ROCKER PANEL, LH

75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH

75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH

76561AMOULDING, CENTER PILLAR, RH

76562AMOULDING, CENTER PILLAR, LH

9015450037

9015960364

9016440096

9016450045

9018904207

9018906150

39 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota 312140

This section contains 39 genuine Toyota parts for the SIDE MOULDING system of the Toyota 312140. Key components include: RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH, RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH, RETAINER, QUARTER VENT LOUVER, CLIP, DOOR BELT MOULDING, CLIP SUB-ASSY, OUTSIDE MOULDING.
