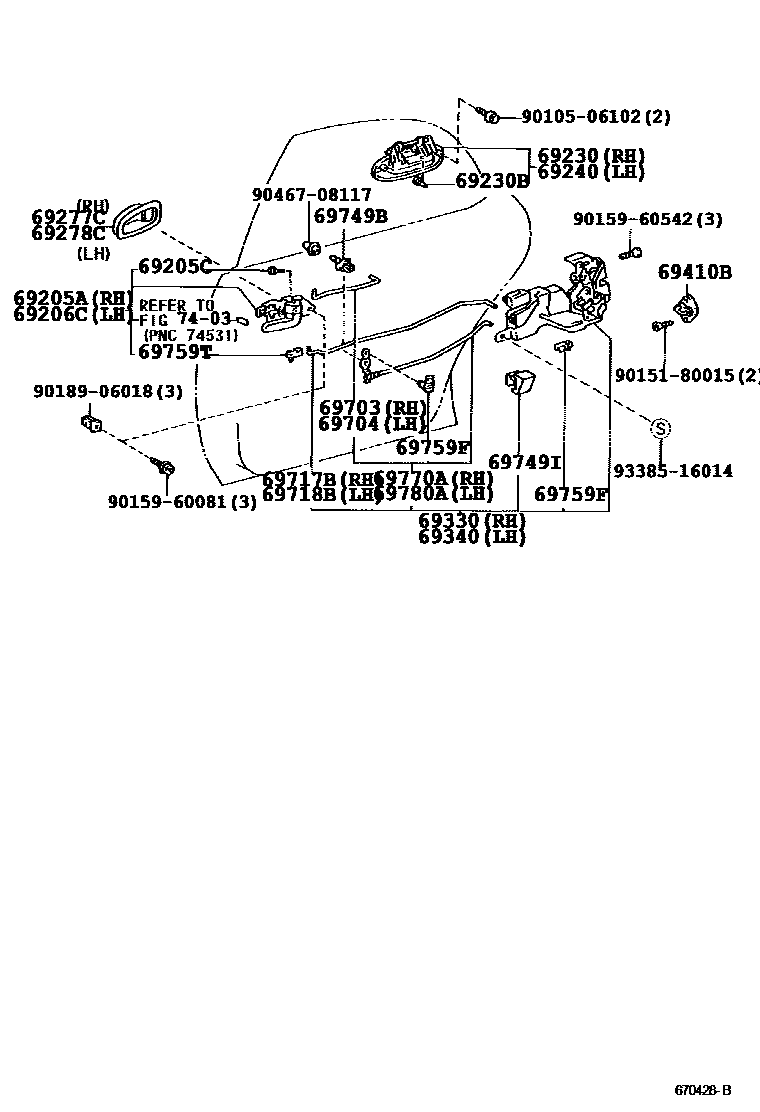

Toyota COROLLA 151 — REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
69749ICLAMP, DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9010506102
9015180015
9015960081
9015960542
9018906018
9046708117
9338516014
29 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota COROLLA 151
This section contains 29 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota COROLLA 151. Key components include: HANDLE SUB-ASSY, REAR DOOR INSIDE, RH, CUSHION(FOR REAR DOOR INSIDE HANDLE), HANDLE SUB-ASSY, REAR DOOR INSIDE, LH, HANDLE ASSY, REAR DOOR OUTSIDE, RH, CUSHION(FOR REAR DOOR OUTSIDE HANDLE).
