Toyota 631530 — FRONT DOOR PANEL & GLASS

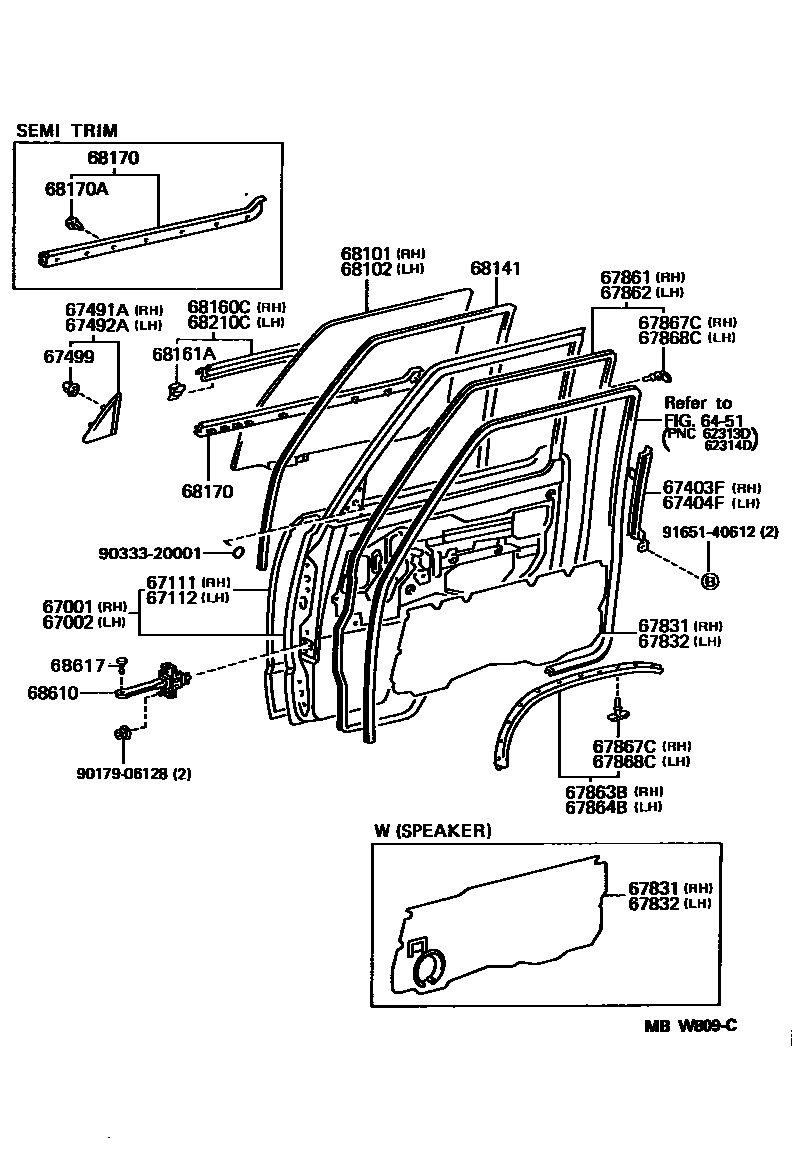

Parts diagram

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

67001PANEL SUB-ASSY, FRONT DOOR, RH

67002PANEL SUB-ASSY, FRONT DOOR, LH

67111PANEL, FRONT DOOR, OUTER RH

67112PANEL, FRONT DOOR, OUTER LH

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

67831COVER, FRONT DOOR SERVICE HOLE, RH

67832COVER, FRONT DOOR SERVICE HOLE, LH

67861WEATHERSTRIP, FRONT DOOR, RH

67862WEATHERSTRIP, FRONT DOOR, LH

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

68101GLASS SUB-ASSY, FRONT DOOR, RH

68102GLASS SUB-ASSY, FRONT DOOR, LH

68141RUN, FRONT DOOR GLASS

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

68610CHECK ASSY, FRONT DOOR

68617PIN, FRONT DOOR CHECK

9017906128

9033320001

9165140612

31 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota 631530

This section contains 49 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota 631530. Key components include: INSIDE TRIM BOARD, PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, BOARD ASSY, FRONT DOOR TRIM, LOWER RH, CLIP(FOR FRONT DOOR TRIM LOWER BOARD).
