Toyota 641110 — REAR FLOOR PANEL & REAR FLOOR MEMBER

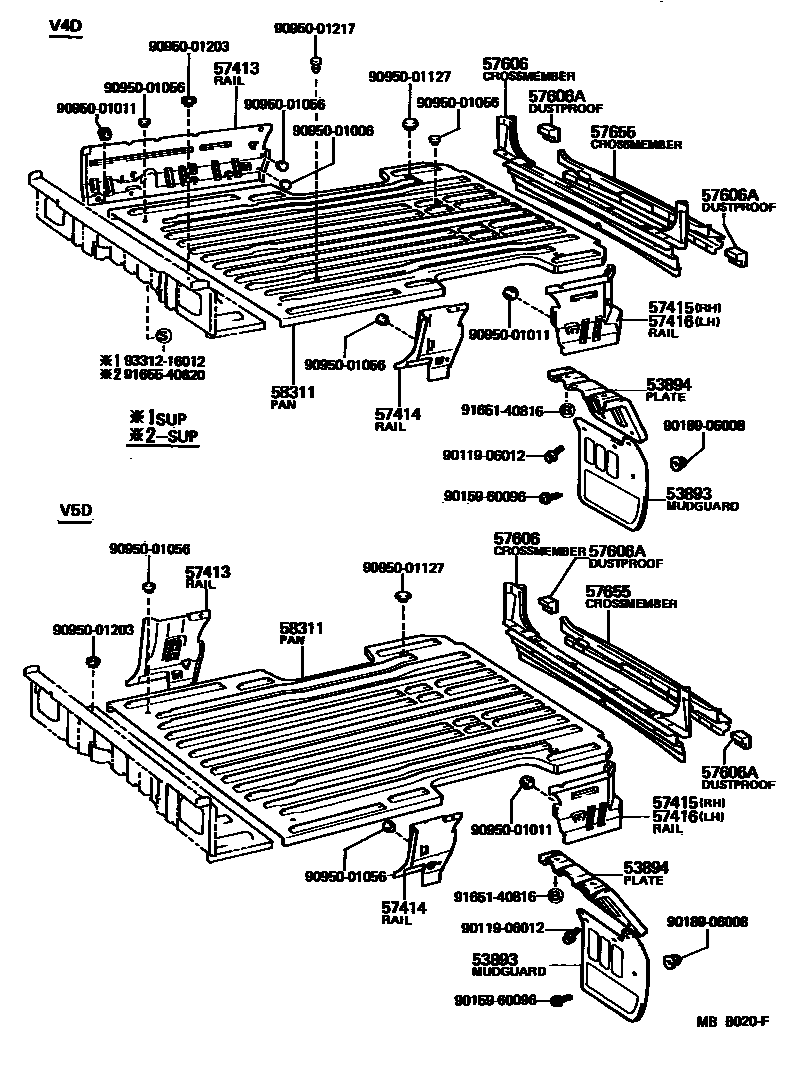

Parts diagram

53893MUDGUARD, REAR

53894PLATE, REAR MUDGUARD SET RETAINER

57413RAIL, FLOOR SIDE, CENTER RH

57414RAIL, FLOOR SIDE, CENTER LH

57415RAIL, FLOOR SIDE, REAR RH

57416RAIL, FLOOR SIDE, REAR LH

57606CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER

57606ADUST PROOF(FOR REAR CROSSMEMBER)

57655MEMBER, REAR FLOOR CROSS, NO.5

9011906012

9015960096

9018906008

9095001006

9095001011

9095001056

9095001127

9095001203

9095001217

9165140816

9165540620

9331216012

22 parts on this diagram · 4 diagrams in section

REAR FLOOR PANEL & REAR FLOOR MEMBER for Toyota 641110

This section contains 56 genuine Toyota parts for the REAR FLOOR PANEL & REAR FLOOR MEMBER system of the Toyota 641110. Key components include: STEP ASSY, FRONT, RH, STEP ASSY, FRONT, LH, MUDGUARD, REAR, PLATE, REAR MUDGUARD SET RETAINER, OUTRIGGER, NO.1 RH.
