Toyota 713250 — REAR BUMPER & BUMPER STAY

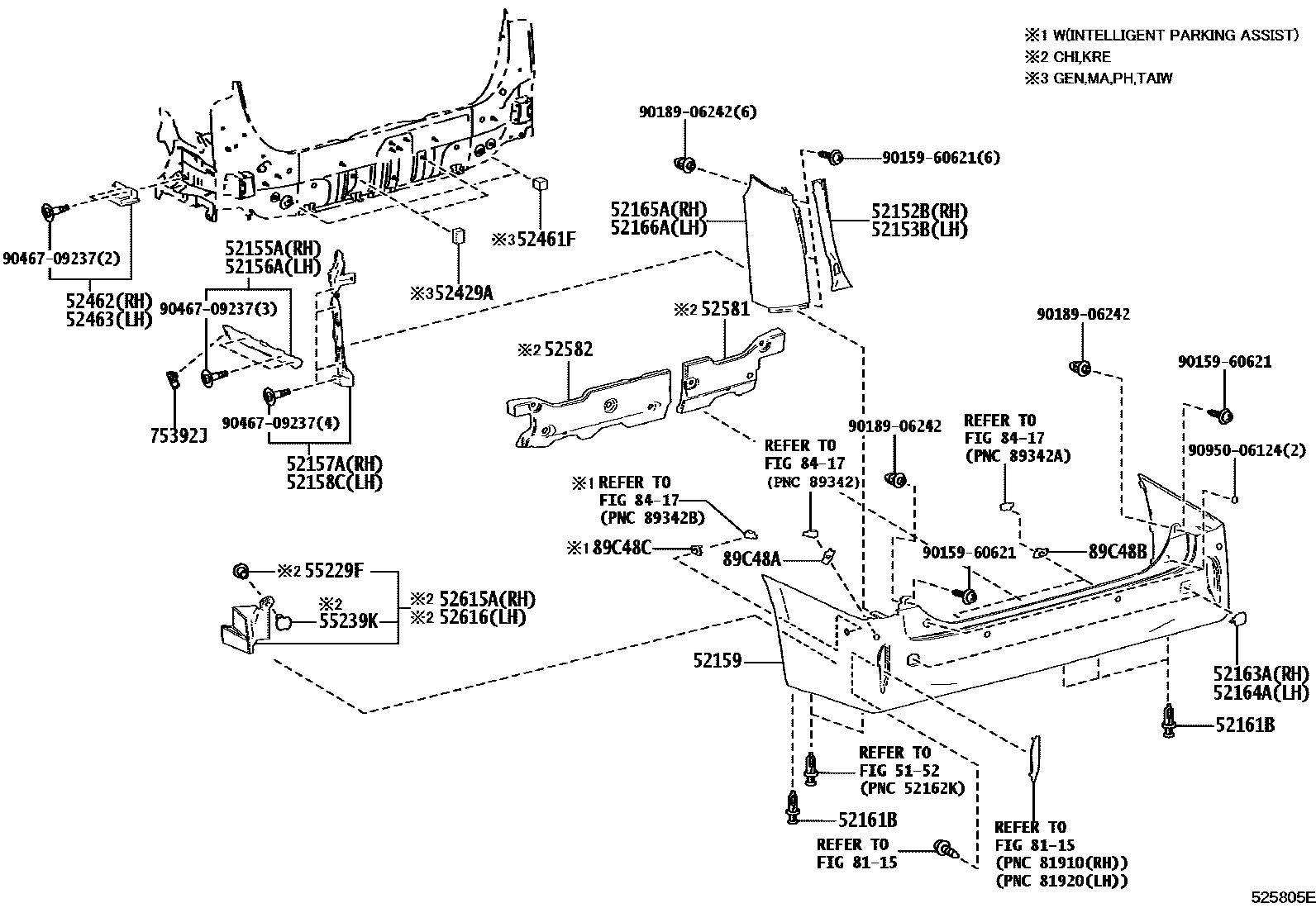

Parts diagram
5152SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-52
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
52159-V2910
52159-V2911
52159-V2912
52159-V2913
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
52166ACOVER, REAR BUMPER, UPR LH
52429ARETAINER, BUMPER PAD
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
52462-V2010
52463PAD, REAR BUMPER, LH
52463-V2010
52581PROTECTOR, REAR BUMPER, RH
52581-V2010
52582PROTECTOR, REAR BUMPER, LH
52582-V2010
52615AABSORBER, REAR BUMPER ENERGY, RH
52616ABSORBER, REAR BUMPER ENERGY, LH
52616-V2010
55229FPLATE, REAR BUMPER ENERGY ABSORBER
55239KPLATE, REAR BUMPER ENERGY ABSORBER
75392JRETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
→ Go to FIG 81-15
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9015960621
90159-60621
9018906242
90189-06242
9046709237
90467-09237
9095006124
90950-06124

33 parts on this diagram · 2 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota 713250

This section contains 38 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota 713250. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, EXTENSION, REAR BUMPER, RH, EXTENSION, REAR BUMPER, LH, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH.
