Toyota 713250 — HOOD & FRONT FENDER

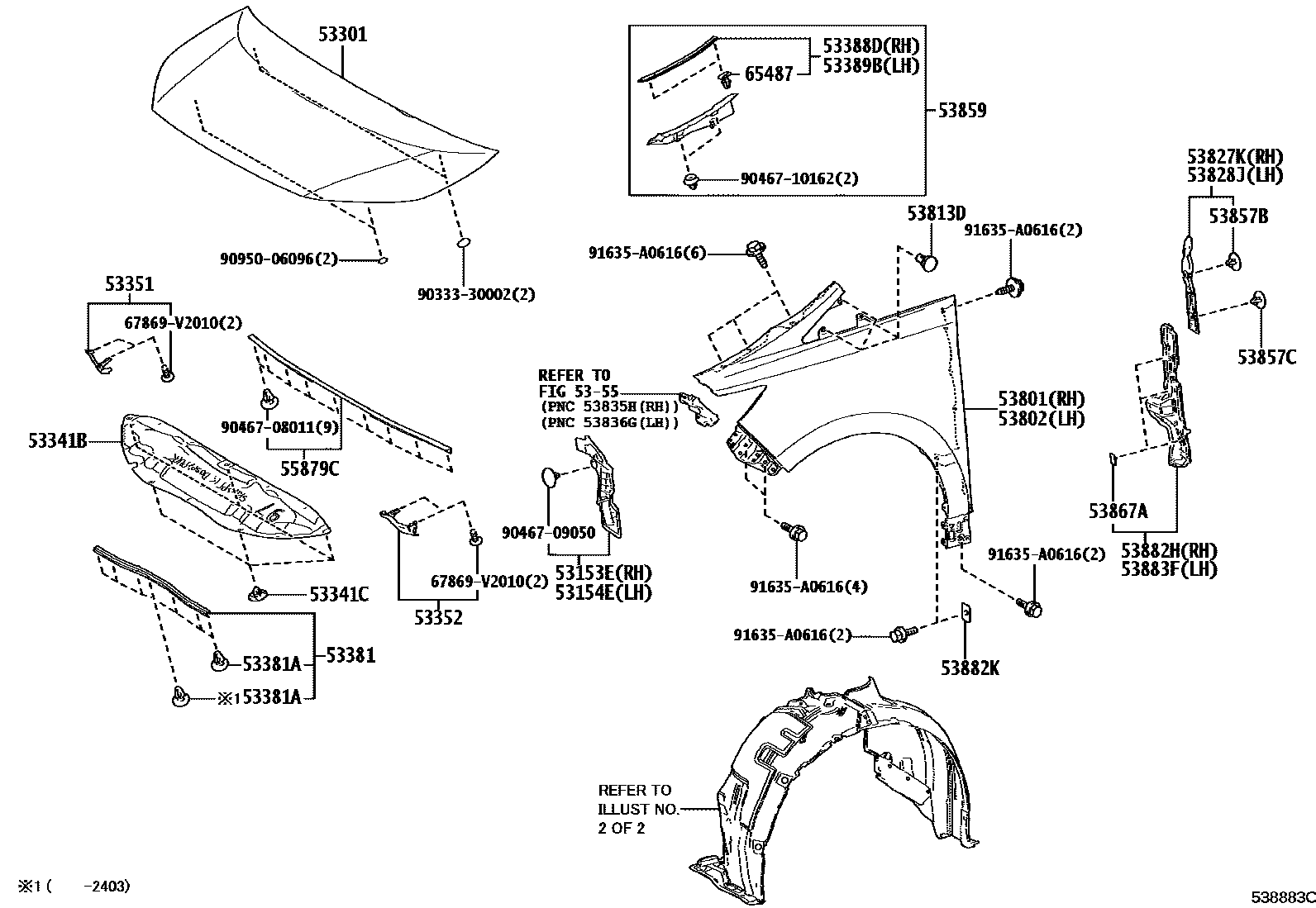

Parts diagram
53153EGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53301-V2010
53301-V2011
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53351PANEL, HOOD SIDE, RH
53351-V2010
53352PANEL, HOOD SIDE, LH
53352-V2010
53381SEAL, HOOD TO RADIATOR SUPPORT
53381-V2010
90467-08011
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
5355FRONT FENDER APRON & DASH PANEL
→ Go to FIG 53-55
53801FENDER SUB-ASSY, FRONT RH
53801-V2010
53802FENDER SUB-ASSY, FRONT LH
53802-V2010
53813DEXTENSION, FRONT FENDER
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53859PROTECTOR, FRONT FENDER
53807-V2010
53808-V2010
53808-V2012
53807-V2012
53867ARETAINER, FRONT FENDER
53882HSEAL, FRONT FENDER MAIN, RH
53882KSEAL, FRONT FENDER
53883FSEAL, FRONT FENDER MAIN, LH
55879CSEAL, COWL VENT
65487CLIP, CORNER PROTECTOR
65487-60010
67869V2010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
67869-V2010
9033330002
90333-30002
9046708011
90467-08011
9046709050
90467-09050
9046710162
90467-10162
9095006096
90950-06096
91635A0616
91635-A0616

33 parts on this diagram · 2 diagrams in section

HOOD & FRONT FENDER for Toyota 713250

This section contains 52 genuine Toyota parts for the HOOD & FRONT FENDER system of the Toyota 713250. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, FRONT BUMPER & BUMPER STAY, GUIDE, FRONT SIDE AIR, GUIDE, FRONT SIDE AIR, NO.2, HOOD SUB-ASSY.
