Toyota 713250 — FRONT BUMPER & BUMPER STAY

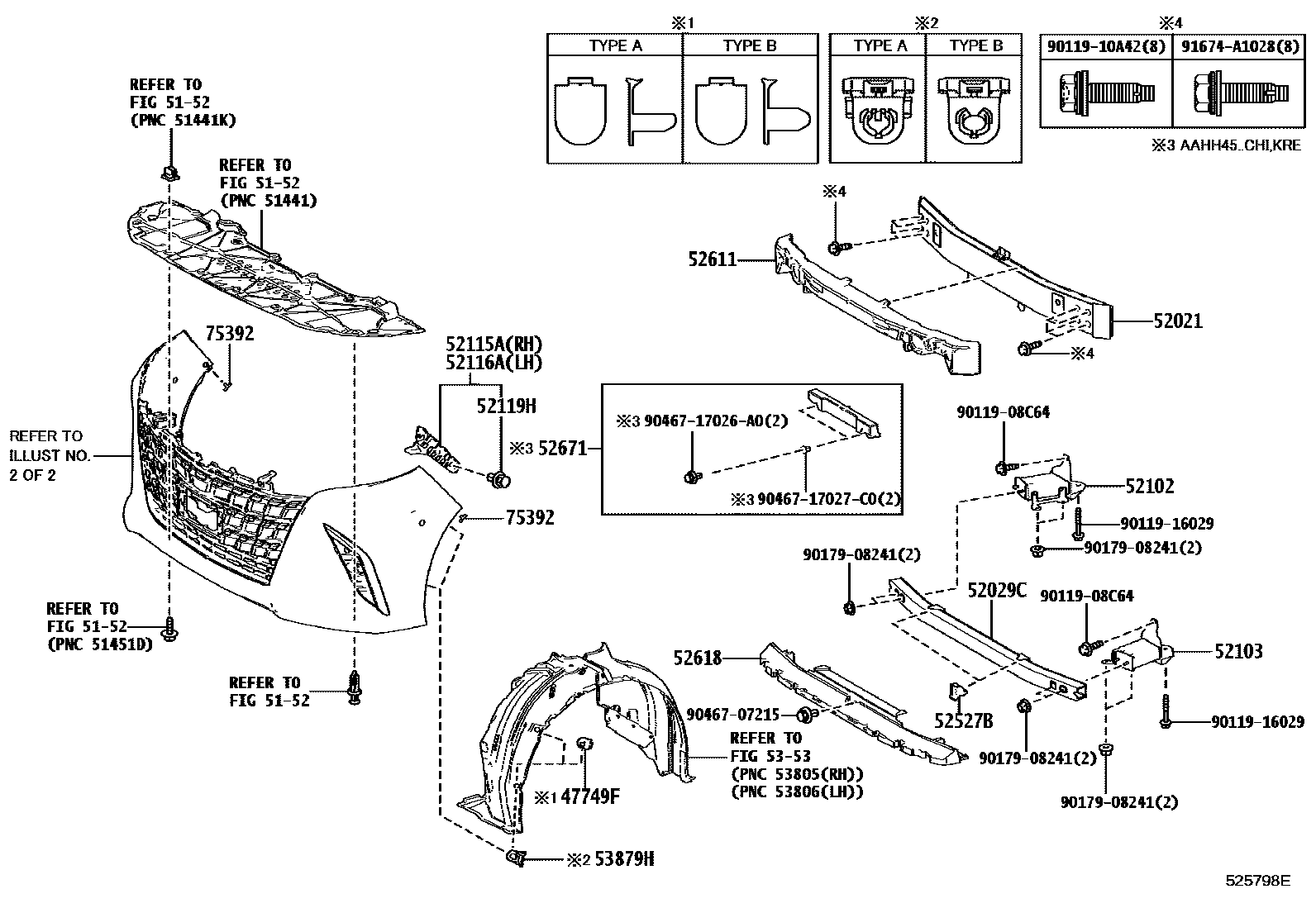

Parts diagram

47749FCLIP, PIN HOLD

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

52115ASUPPORT, FRONT BUMPER SIDE, RH

52116ASUPPORT, FRONT BUMPER SIDE, LH

52119HCLIP, NO.2

52527BRETAINER, FRONT BUMPER, LOWER NO.2

52611ABSORBER, FRONT BUMPER ENERGY

52618ABSORBER, FRONT BUMPER, LOWER

52671EXTENSION, FRONT BUMPER ARM

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

75392RETAINER, OUTSIDE MOULDING

9011908C64

9011910A42

9011916029

9017908241

9046707215

9046717026A0

9046717027C0

91674A1028

24 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 713250
