Toyota 713250 — ENGINE OIL COOLER

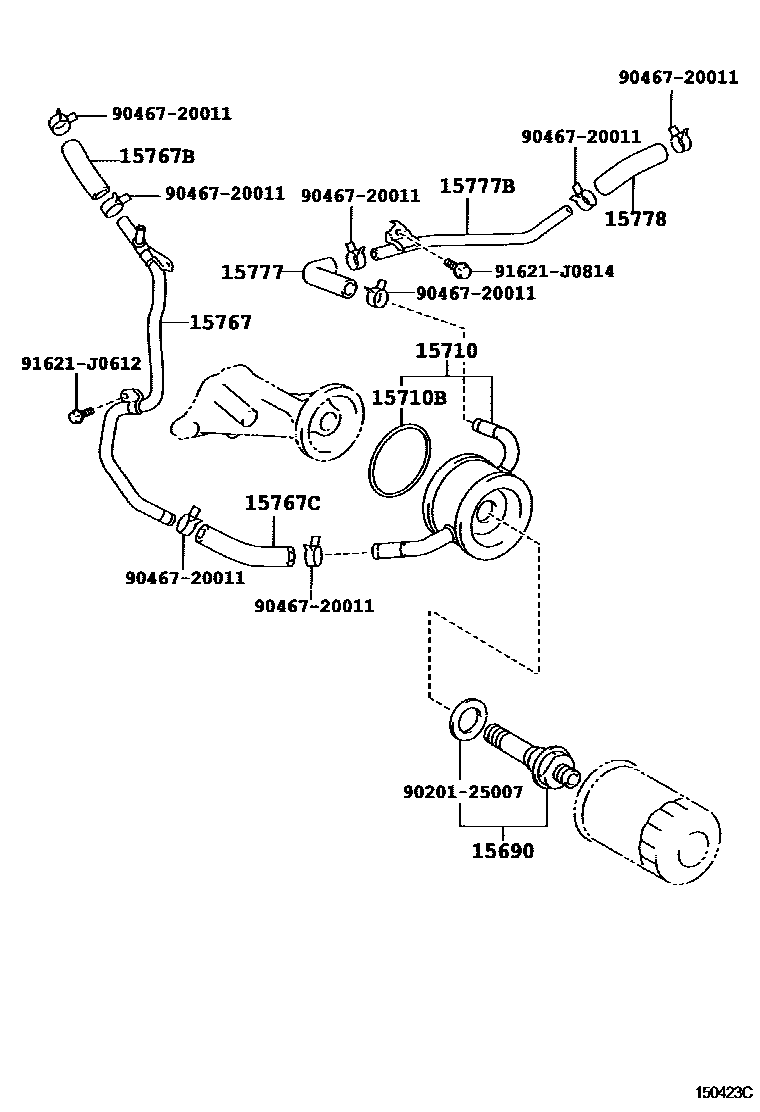

Parts diagram
15690VALVE ASSY, OIL COOLER RELIEF
15695-88410
15695-88411
15710COOLER ASSY, OIL
90301-67004
15710-50011
15710BRING, O(FOR OIL COOLER)
15767PIPE, OIL COOLER
16282-50020
16281-50030
15767-50090
15767BHOSE, WATER BY-PASS, NO.4
15767CHOSE, WATER BY-PASS, NO.5
15777HOSE, OIL COOLER
15769-50020
15777-50080
15777BPIPE, OIL COOLER
15778HOSE, OIL COOLER, NO.2
15778-50020
9020125007
90201-25007
9046720011
90467-20011
91621J0612
91621-J0612
91621J0814
91621-J0814

13 parts on this diagram · 1 diagram in section

ENGINE OIL COOLER for Toyota 713250

This section contains 13 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota 713250. Key components include: VALVE ASSY, OIL COOLER RELIEF, COOLER ASSY, OIL, RING, O(FOR OIL COOLER), PIPE, OIL COOLER, HOSE, WATER BY-PASS, NO.4.
