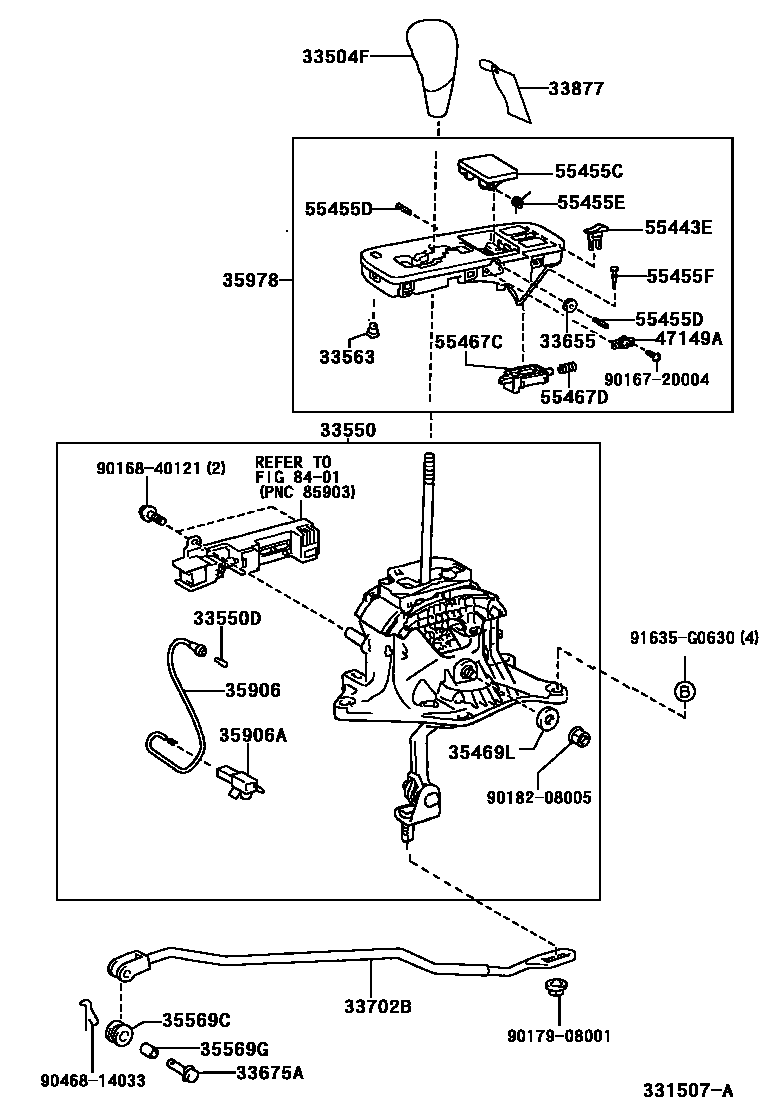

Toyota 284580 — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33655GEAR, SHIFT LEVER, NO.1
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35469LSPACER, SHIFT LEVER
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
47149ADAMPER, RETURN SPRING
55443EKNOB, SHIFT POSITION INDICATOR
55455CPANEL, COIN BOX, NO.1
55455DPIN, STRAIGHT
55455ESPRING, TORSION(FOR COIN BOX PANEL)
55455FPIN, STRAGHT(FOR COIN BOX PANEL)
55467CLOCK, COIN BOX
55467DSPRING, COMPRESSION(FOR COIN BOX LOCK)
8401SWITCH & RELAY & COMPUTER
9016720004
9016840121
9017908001
9018208005
9046814033
91635G0630
29 parts on this diagram · 2 diagrams in section
SHIFT LEVER & RETAINER for Toyota 284580
This section contains 35 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota 284580. Key components include: KNOB SUB-ASSY, SHIFT LEVER, FLOOR SHIFT ASSY, TRANSMISSION, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL.
