Toyota 284580 — OIL COOLER & TUBE (ATM)

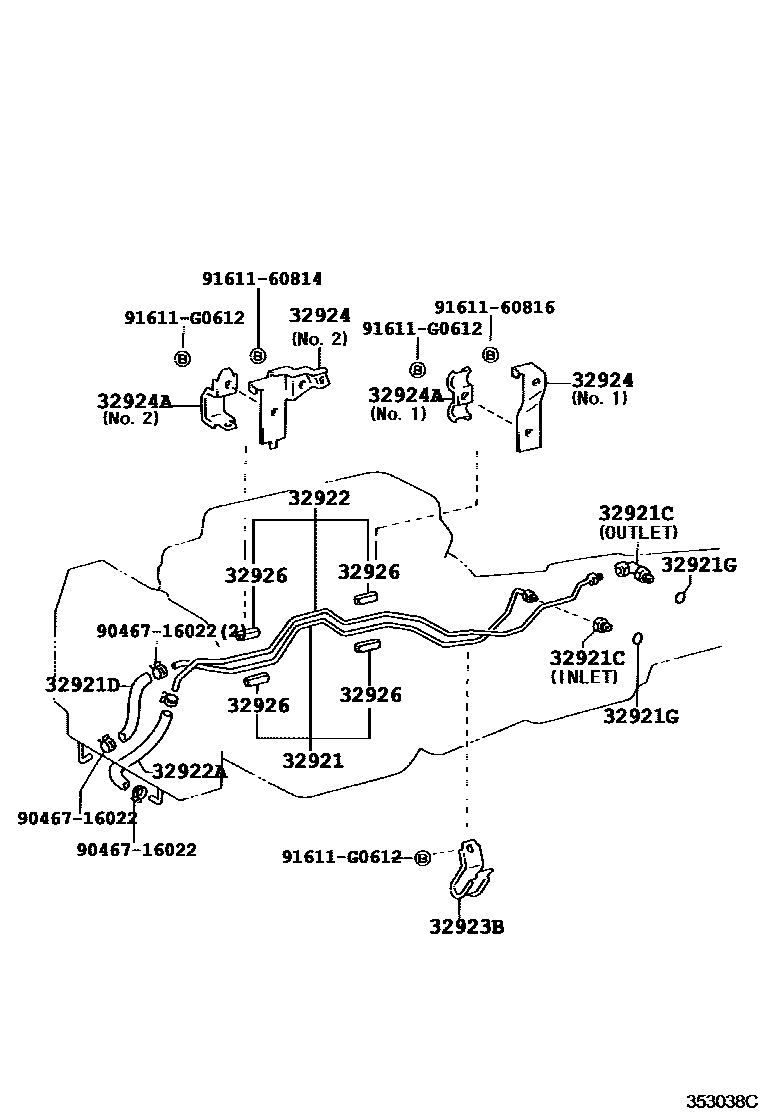

Parts diagram

32921TUBE, OIL COOLER INLET, NO.1

32921CUNION(FOR OIL COOLER TUBE)

32921DHOSE(FOR OIL COOLER INLET)

32921GRING, O(FOR OIL COOLER TUBE UNION)

32922TUBE, OIL COOLER OUTLET, NO.1

32922AHOSE(FOR OIL COOLER OUTLET)

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

32924CLAMP, OIL COOLER TUBE, NO.2

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

32926CUSHION, OIL COOLER TUBE(ATM)

9046716022

9161160814

9161160816

91611G0612

14 parts on this diagram · 2 diagrams in section

OIL COOLER & TUBE (ATM) for Toyota 284580

This section contains 16 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota 284580. Key components include: TUBE, OIL COOLER INLET, NO.1, UNION(FOR OIL COOLER TUBE), HOSE(FOR OIL COOLER INLET), RING, O(FOR OIL COOLER TUBE UNION), CLIP(FOR OIL COOLER HOSE).
