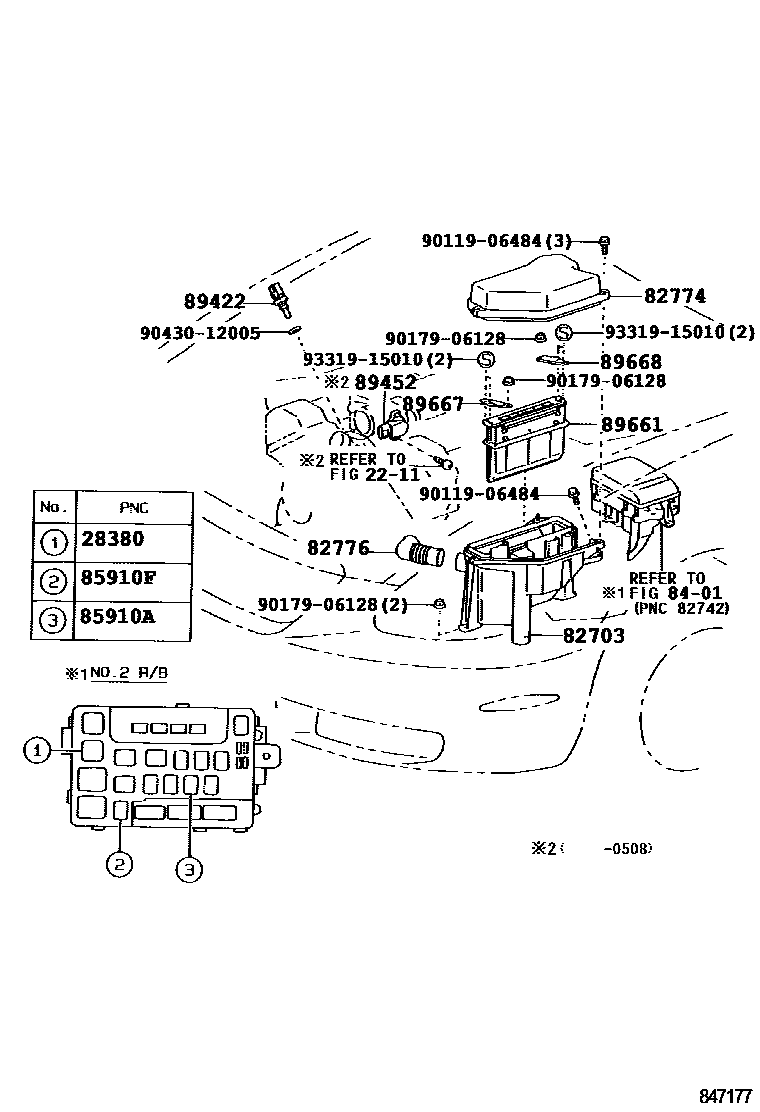

Toyota 284580 — ELECTRONIC FUEL INJECTION SYSTEM
2211FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
82703BOX SUB-ASSY, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82776DUCT, ENGINE ROOM ECU OUTLET
8401SWITCH & RELAY & COMPUTER
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906484
9017906128
9043012005
9331915010
17 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota 284580
This section contains 17 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota 284580. Key components include: FUEL INJECTION SYSTEM, RELAY ASSY, FUEL PUMP, BOX SUB-ASSY, ENGINE ROOM ECU, COVER, ENGINE ROOM ECU, DUCT, ENGINE ROOM ECU OUTLET.
