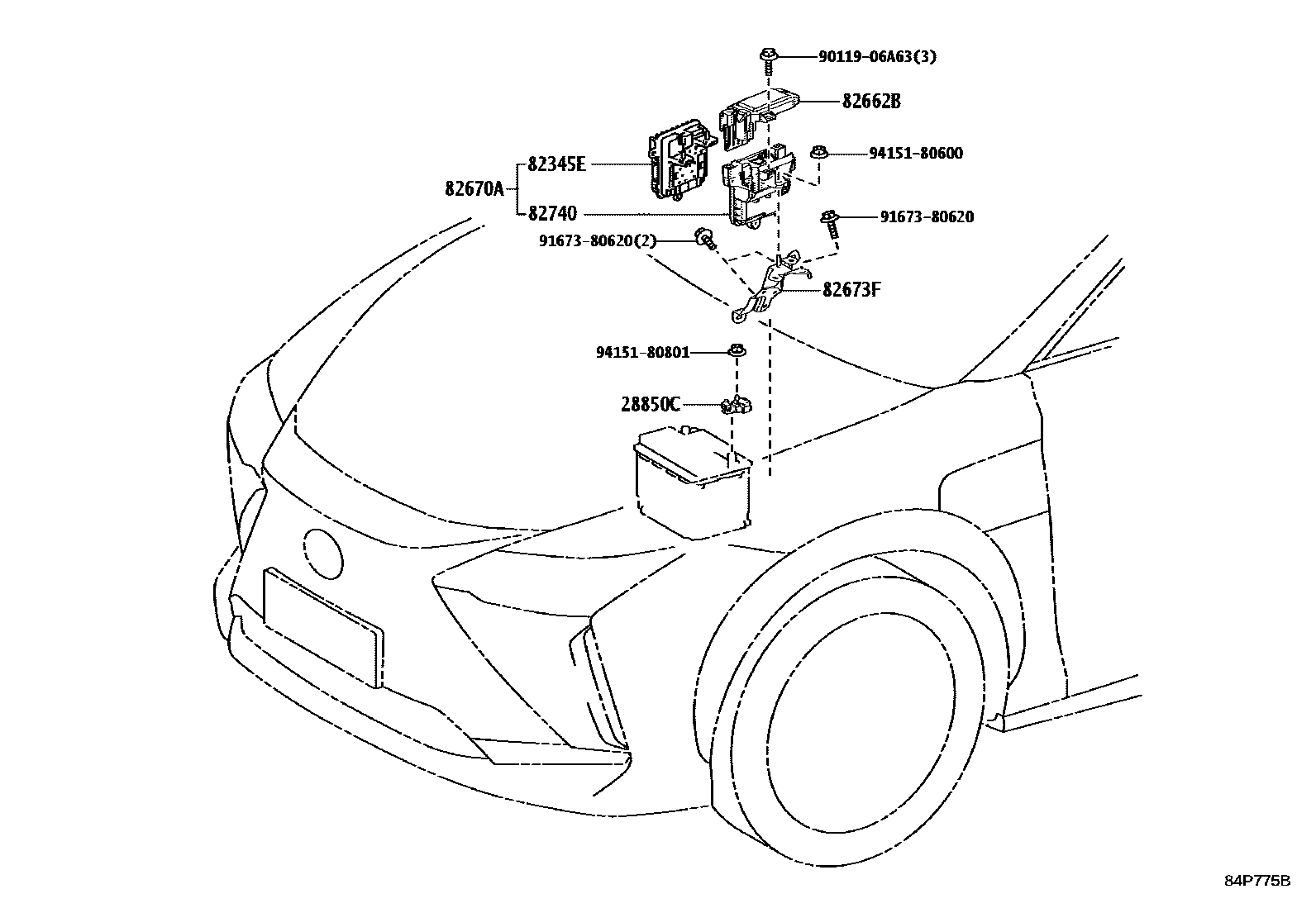

Toyota LEXUS RZ300E/450E 564 — SWITCH & RELAY & COMPUTER
28850CSENSOR ASSY, BATTERY STATE
82345EDIODE, NO.1
82662BCOVER, RELAY BLOCK, UPPER, NO.2
82670ABLOCK ASSY, JUNCTION, NO.1
82673FBRACKET, JUNCTION BLOCK
82740BLOCK ASSY, ENGINE ROOM RELAY
9011906A63
9167380620
9415180600
9415180801
10 parts on this diagram · 9 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota LEXUS RZ300E/450E 564
This section contains 148 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS RZ300E/450E 564. Key components include: RELAY, IGP, RELAY, IGP, NO.2, RELAY, BATTERY FAN, SENSOR ASSY, BATTERY STATE, BRACKET, INTEGRATION CONTROL SUPPLY, NO.1.
