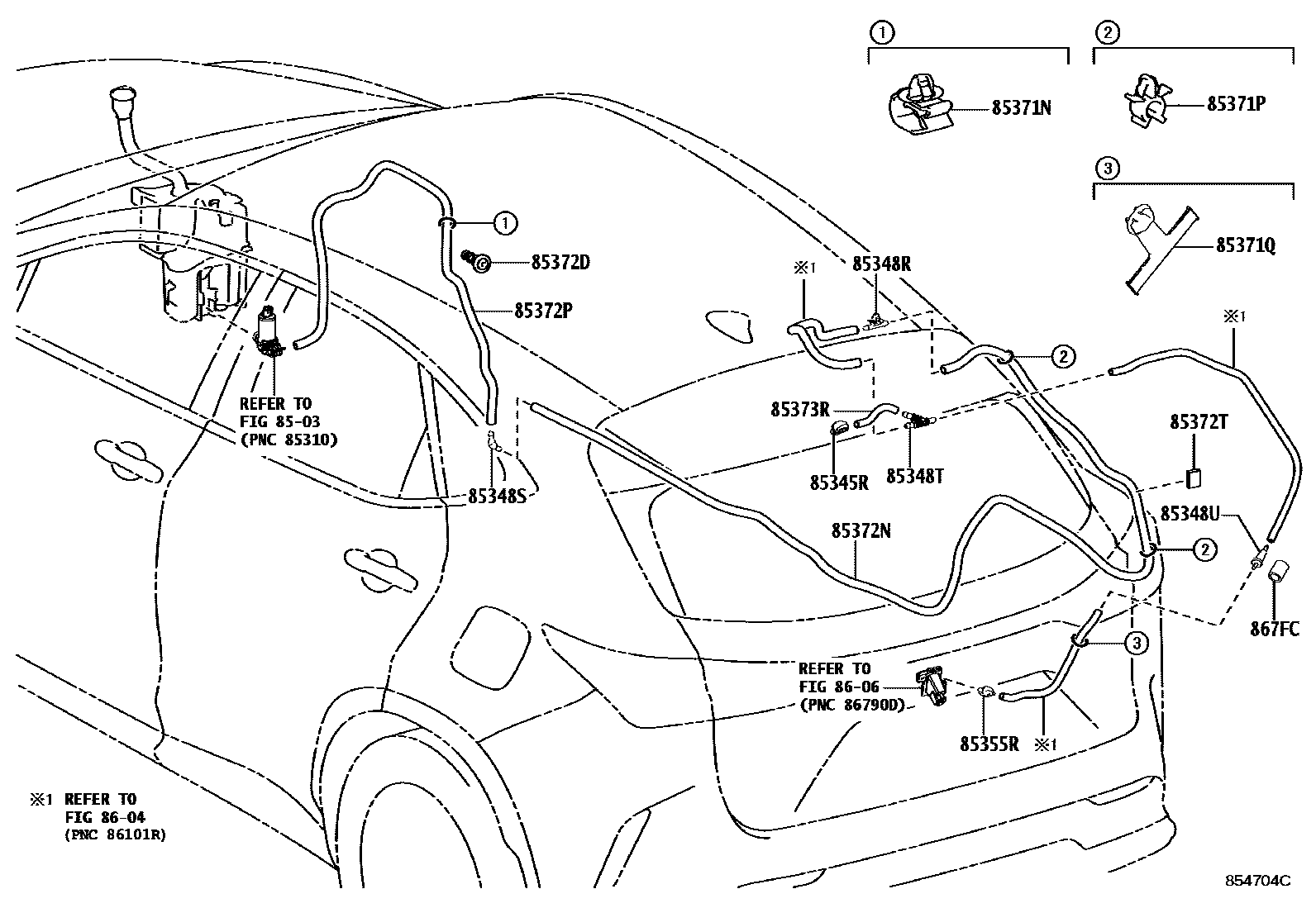

Toyota 527120 — REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85348UJOINT, REAR WASHER HOSE, NO.3

85355RVALVE, REAR WASHER HOSE

85371NCLAMP, REAR WASHER HOSE

85371PCLAMP, REAR WASHER HOSE, NO.2

85371QCLAMP, REAR WASHER HOSE, NO.3

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372TGROMMET, WASHER

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

8604ANTENNA

→ Go to FIG 86-04

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

867FCCUSHION, CLEANER HOSE

867FC-26030

18 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota 527120

This section contains 18 genuine Toyota parts for the REAR WASHER system of the Toyota 527120. Key components include: WINDSHIELD WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
