Toyota 245120 — ANTENNA

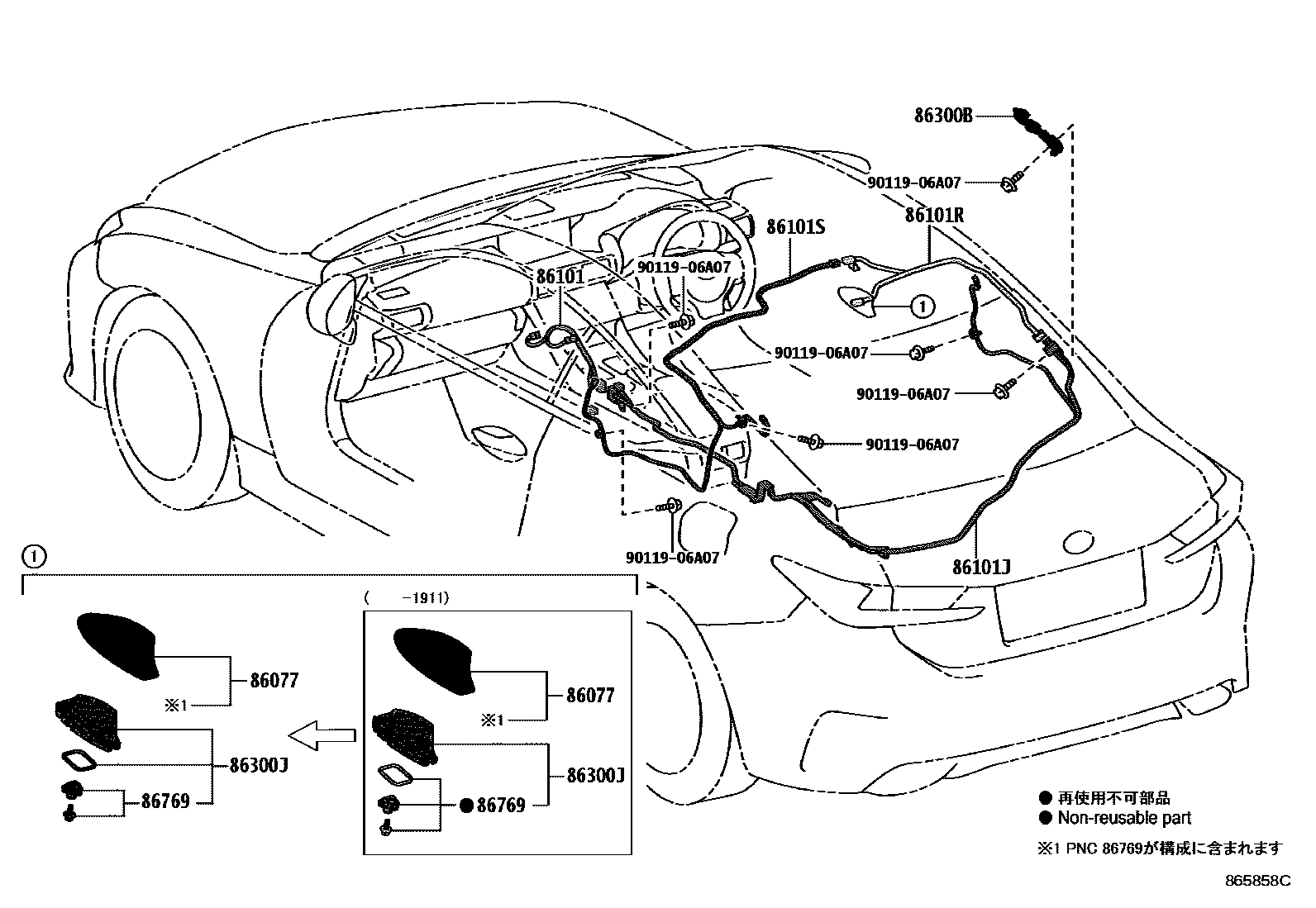

Parts diagram
86077COVER KIT, ANTENNA
86077-53010
86077-53020
86101CORD SUB-ASSY, ANTENNA
86101-24490
86101-24510
86101-24520
86101-24770
86101-24780
86101-24820
86101-53840
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101RCORD SUB-ASSY, ANTENNA, NO.5
86101SCORD SUB-ASSY, ANTENNA
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300JANTENNA ASSY, ROOF
86769HOUSING, ROOF ANTENNA
86769-53010
86769-62010
9011906A07
90119-06A07

9 parts on this diagram · 1 diagram in section

ANTENNA for Toyota 245120

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota 245120. Key components include: COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, CORD SUB-ASSY, ANTENNA, NO.5.
