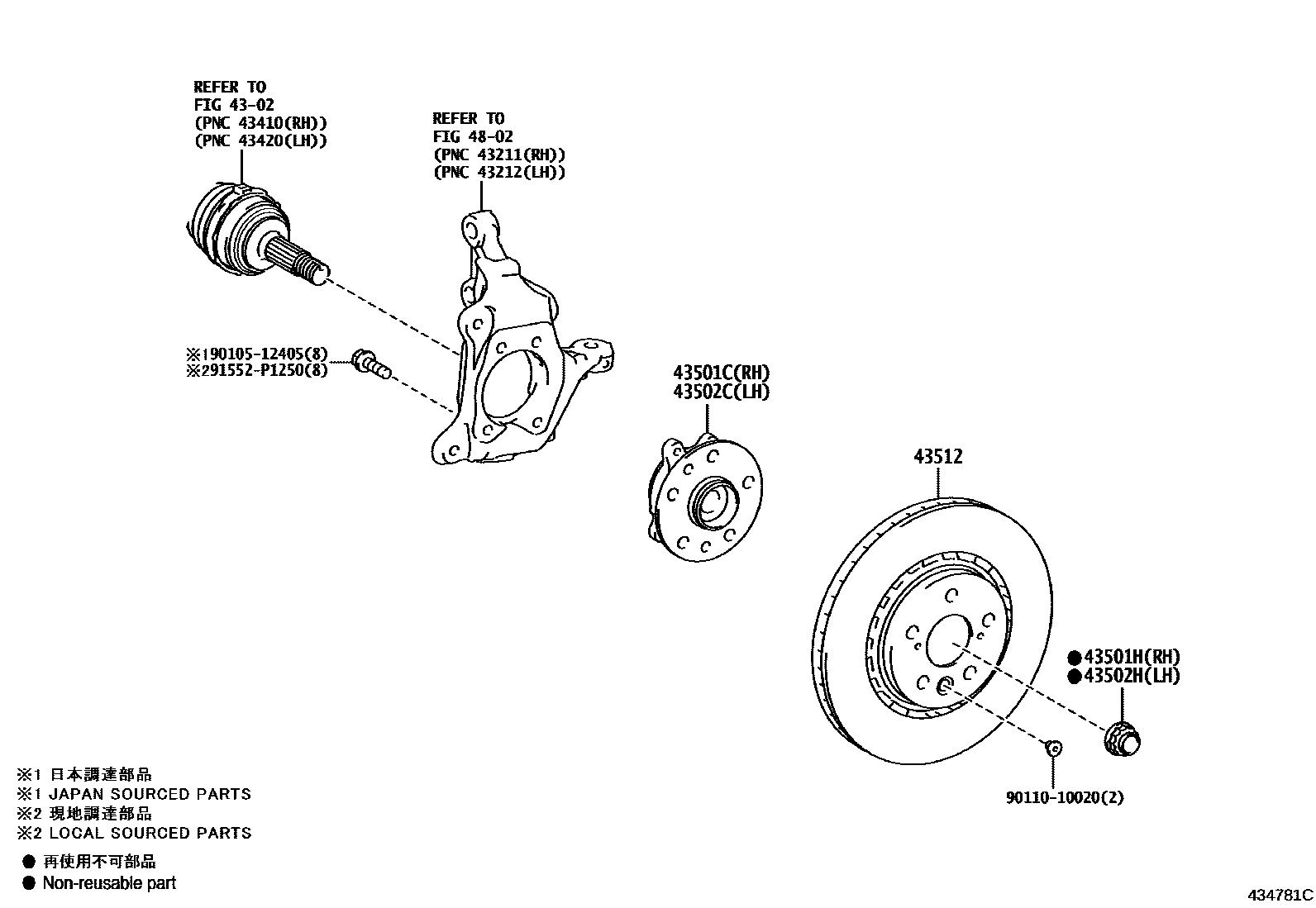

Toyota LEXUS NX SERIES 527 — FRONT AXLE HUB

Parts diagram
4302FRONT DRIVE SHAFT
→ Go to FIG 43-02
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
43512-78010
43512-78020
4802FRONT AXLE ARM & STEERING KNUCKLE
→ Go to FIG 48-02
9010512405
90105-12405
9011010020
90110-10020
91552P1250
91552-P1250

10 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota LEXUS NX SERIES 527

This section contains 10 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota LEXUS NX SERIES 527. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH, NUT (FOR FRONT AXLE SHAFT LH).
