Toyota LEXUS ES300H 282 — ELECTRONIC MODULATED SUSPENSION

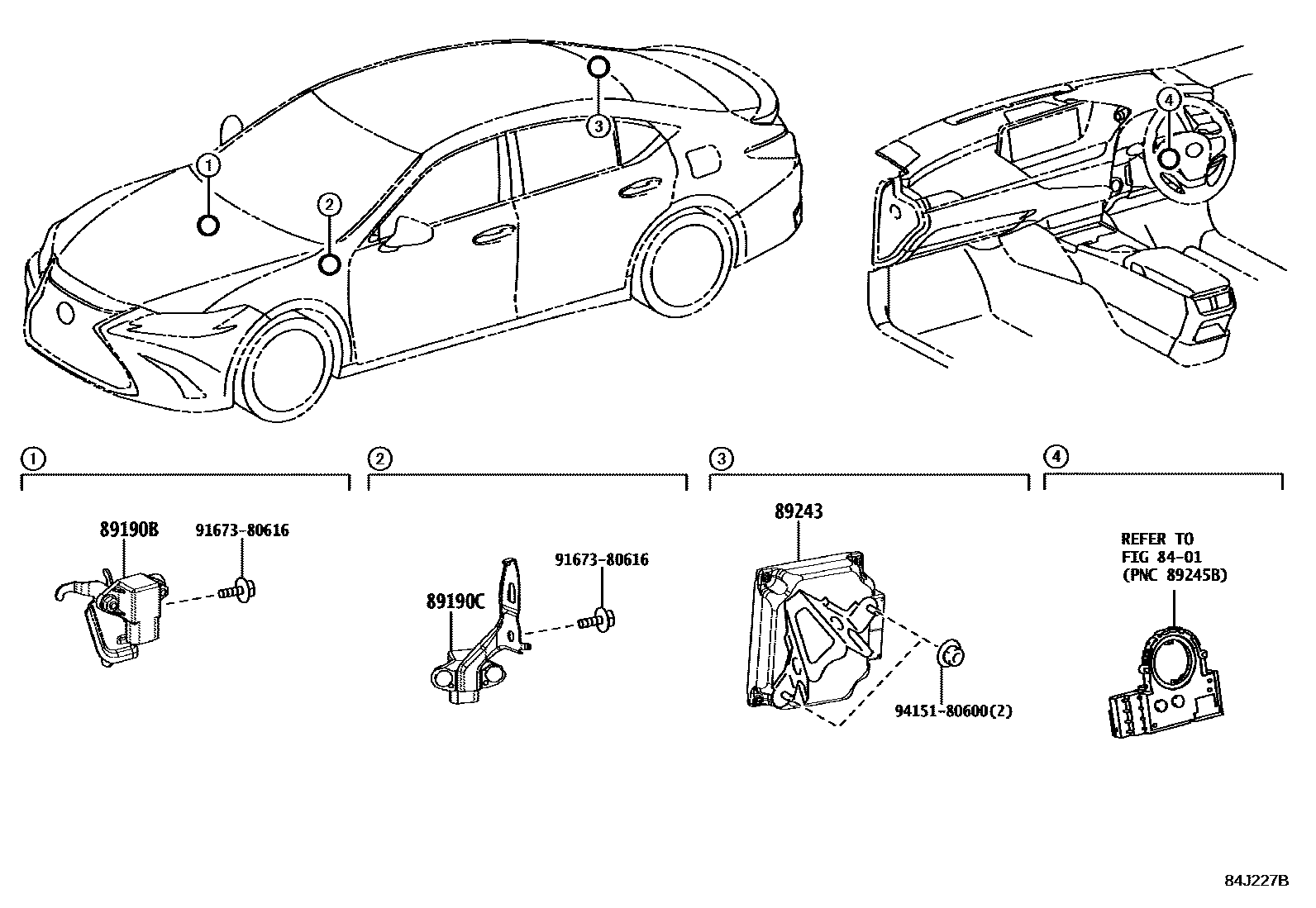

Parts diagram
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
89190BSENSOR ASSY, ACCELERATION, RH
89190CSENSOR ASSY, ACCELERATION, LH
89243COMPUTER, ABSORBER CONTROL
89243-33110
89243-33111
89243-33130
89243-33131
9167380616
91673-80616
9415180600
94151-80600

6 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota LEXUS ES300H 282

This section contains 6 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota LEXUS ES300H 282. Key components include: SWITCH & RELAY & COMPUTER, SENSOR ASSY, ACCELERATION, RH, SENSOR ASSY, ACCELERATION, LH, COMPUTER, ABSORBER CONTROL.
