Toyota 521260 — EXHAUST PIPE

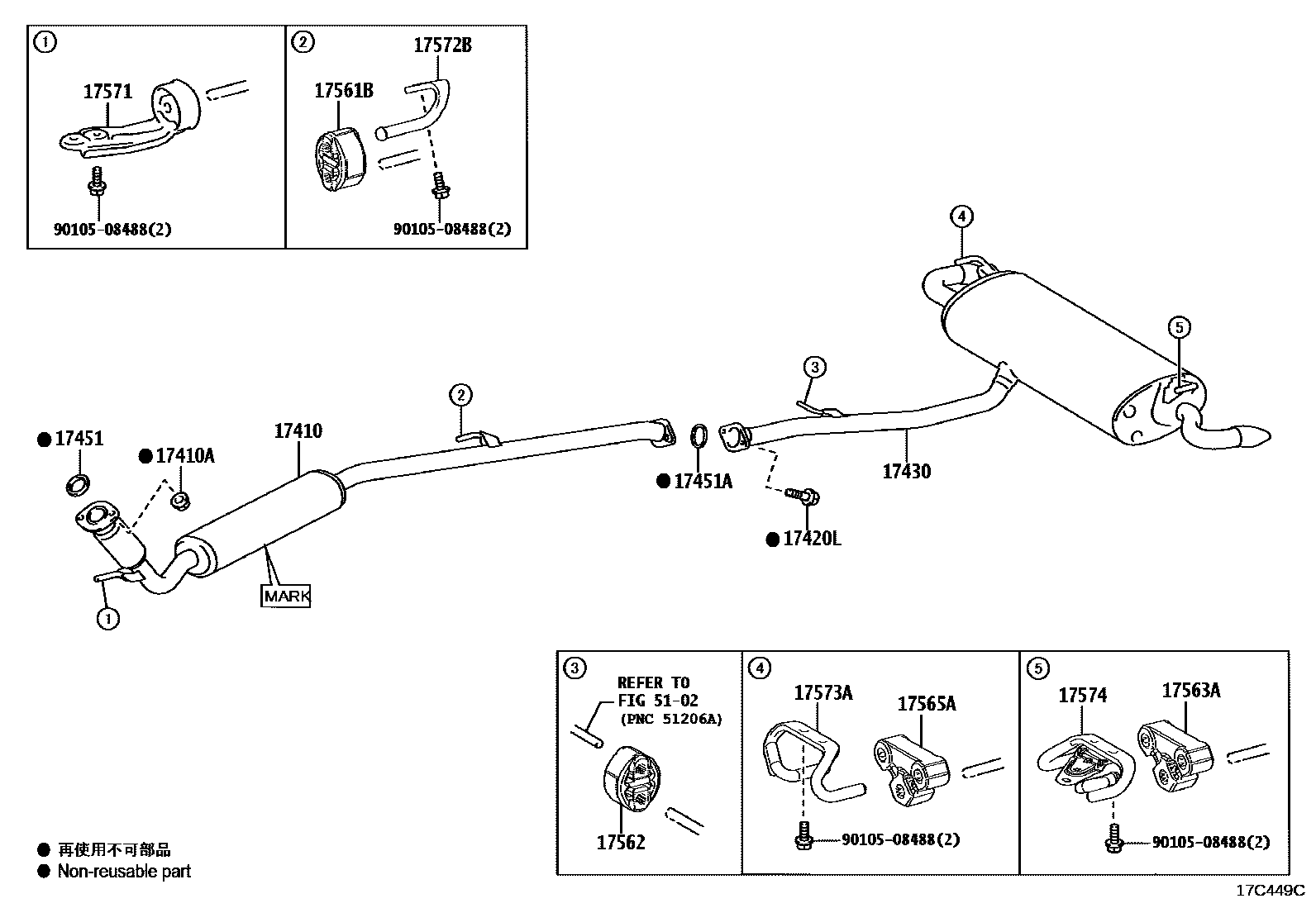

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17410ANUT, EXHAUST PIPE SET STUD BOLT

17420LBOLT, FLANGE(FOR EXHAUST PIPE)

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17561BSUPPORT, EXHAUST PIPE, NO.1

17562SUPPORT, EXHAUST PIPE, NO.2

17563ASUPPORT, EXHAUST PIPE, NO.3

17565ASUPPORT, EXHAUST PIPE, NO.4

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

9010508488

16 parts on this diagram · 3 diagrams in section

EXHAUST PIPE for Toyota 521260
