Toyota 16C310 — EXHAUST PIPE

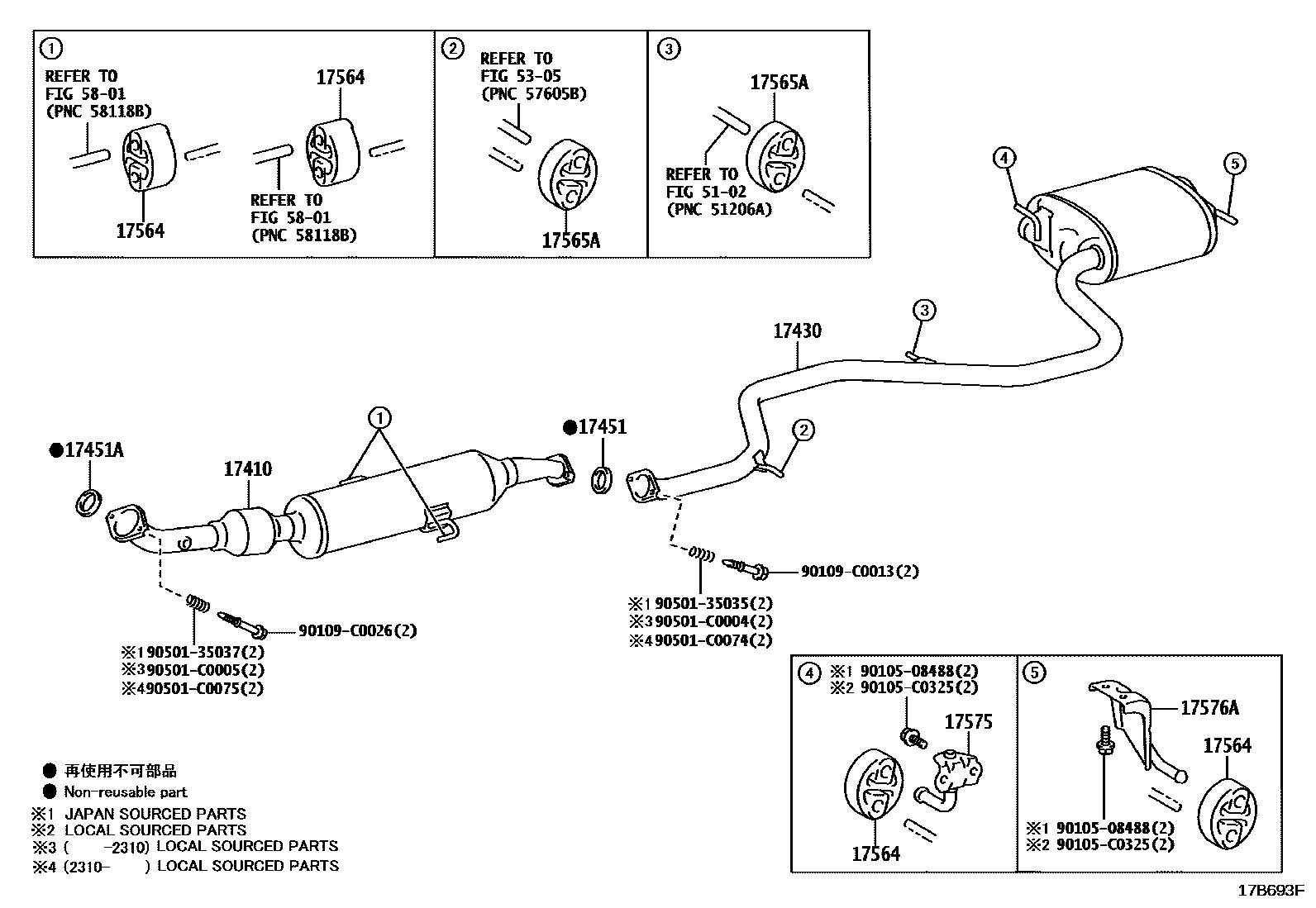

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17564SUPPORT,EXHAUST PIPE, NO.4

17565ASUPPORT, EXHAUST PIPE, NO.4

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010508488

90105C0325

90109C0013

90109C0026

9050135035

9050135037

90501C0004

90501C0005

90501C0074

90501C0075

21 parts on this diagram · 2 diagrams in section

EXHAUST PIPE for Toyota 16C310
