Toyota LAND CRUISER PRADO 781 — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53441BSUPPORT, HOOD
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
53498PAD, HOOD HINGE, NO.2
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
8761622010CLAMP, COOLING UNIT CASE
9011906543
9011908716
9048015024
91511B0814
9151260814
9356015014

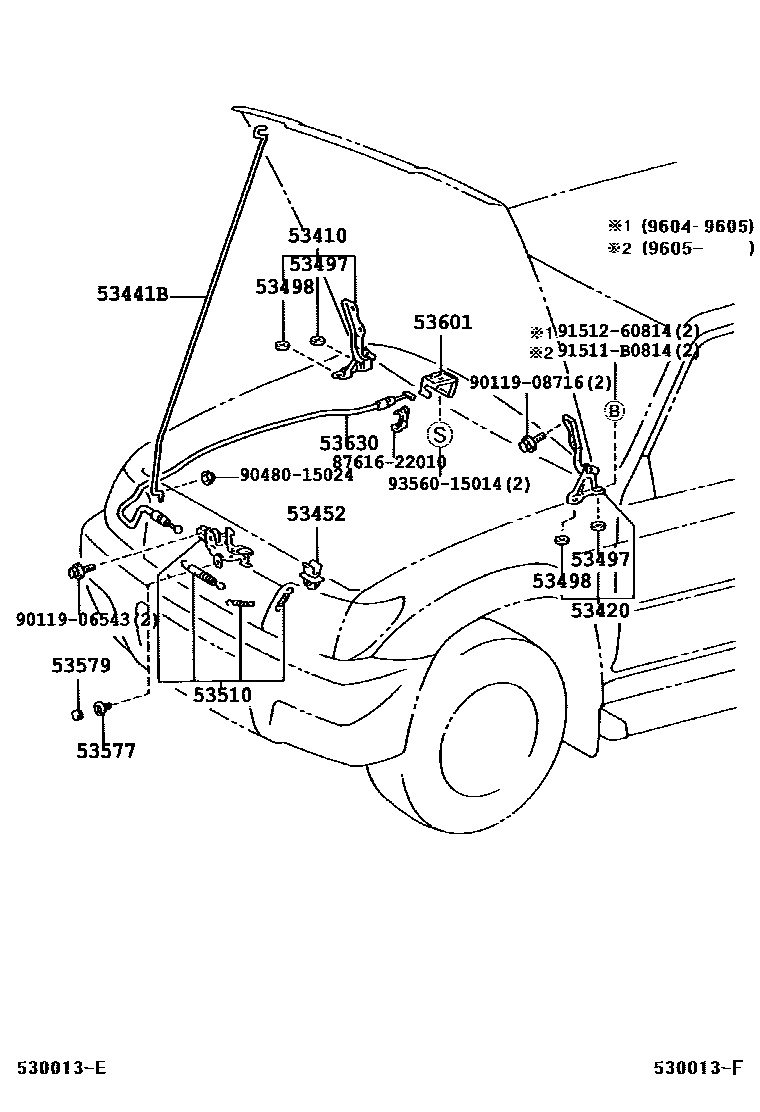

18 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota LAND CRUISER PRADO 781
This section contains 18 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota LAND CRUISER PRADO 781. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT, HOOD, HOLDER, HOOD STAY, PAD, HOOD HINGE, NO.1.
