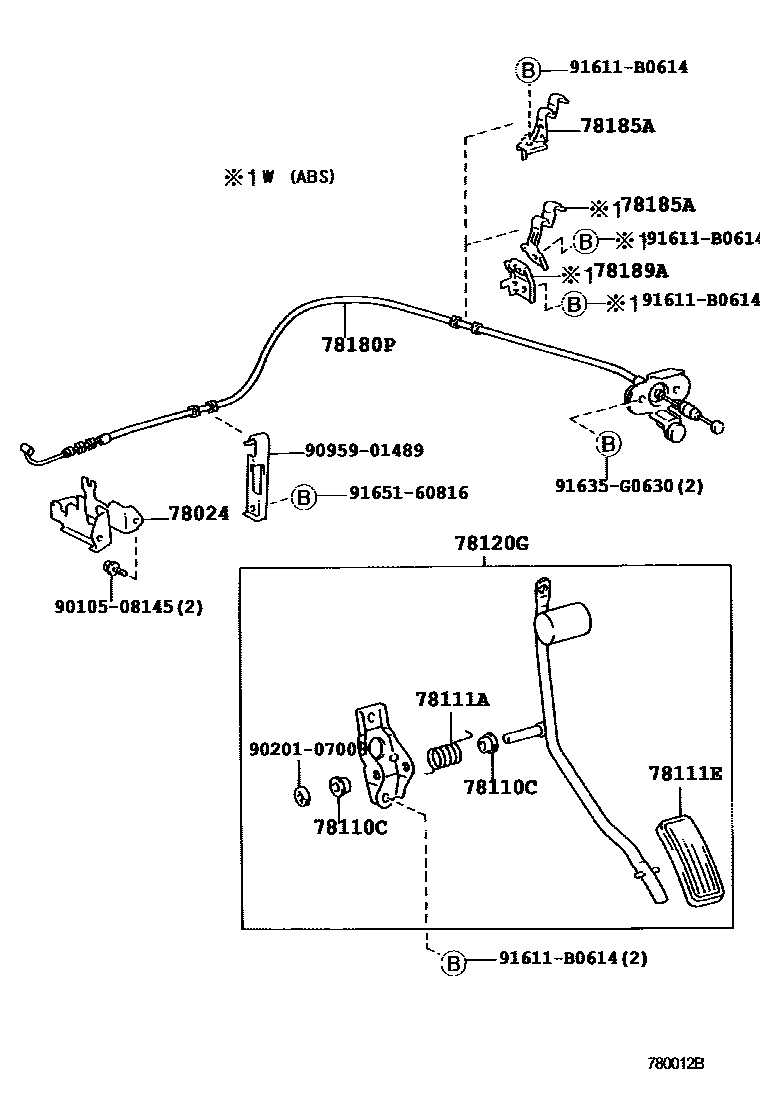

Toyota LAND CRUISER 90 781 — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78111ASPRING (FOR ACCELERATOR PEDAL)
78111EPAD, ACCELERATOR PEDAL
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
9010508145
9020107008
9095901489
91611B0614
91635G0630
9165160816
14 parts on this diagram · 9 diagrams in section
ACCELERATOR LINK for Toyota LAND CRUISER 90 781
This section contains 32 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER 90 781. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, BUSH (FOR ACCELERATOR PEDAL ROD), SPRING (FOR ACCELERATOR PEDAL), PAD, ACCELERATOR PEDAL, ROD ASSY, ACCELERATOR PEDAL.
