Toyota 513120 — EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
2211FUEL INJECTION SYSTEM
25620CHOSE, WATER BY-PASS, NO.1
25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)
25620EHOSE, WATER BY-PASS NO.2
25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)
25627GASKET, EGR VALVE
25631STAY, EGR PIPE, NO.1
25633GASKET, EGR VALVE
9011608187
9017908119
9017908153
91511B0620
91511B0850
91651B0822
19 parts on this diagram · 1 diagram in section

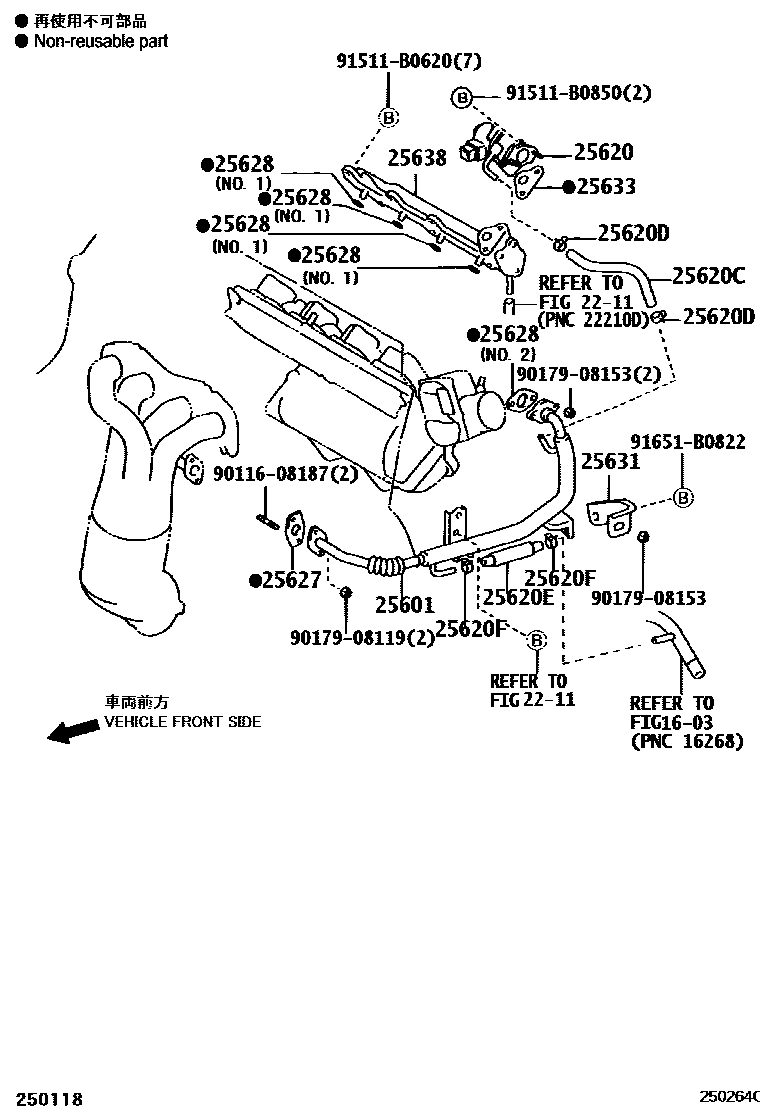

EXHAUST GAS RECIRCULATION SYSTEM for Toyota 513120
This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota 513120. Key components include: RADIATOR & WATER OUTLET, FUEL INJECTION SYSTEM, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, HOSE, WATER BY-PASS, NO.1.
