Toyota 513120 — ENGINE OIL PUMP

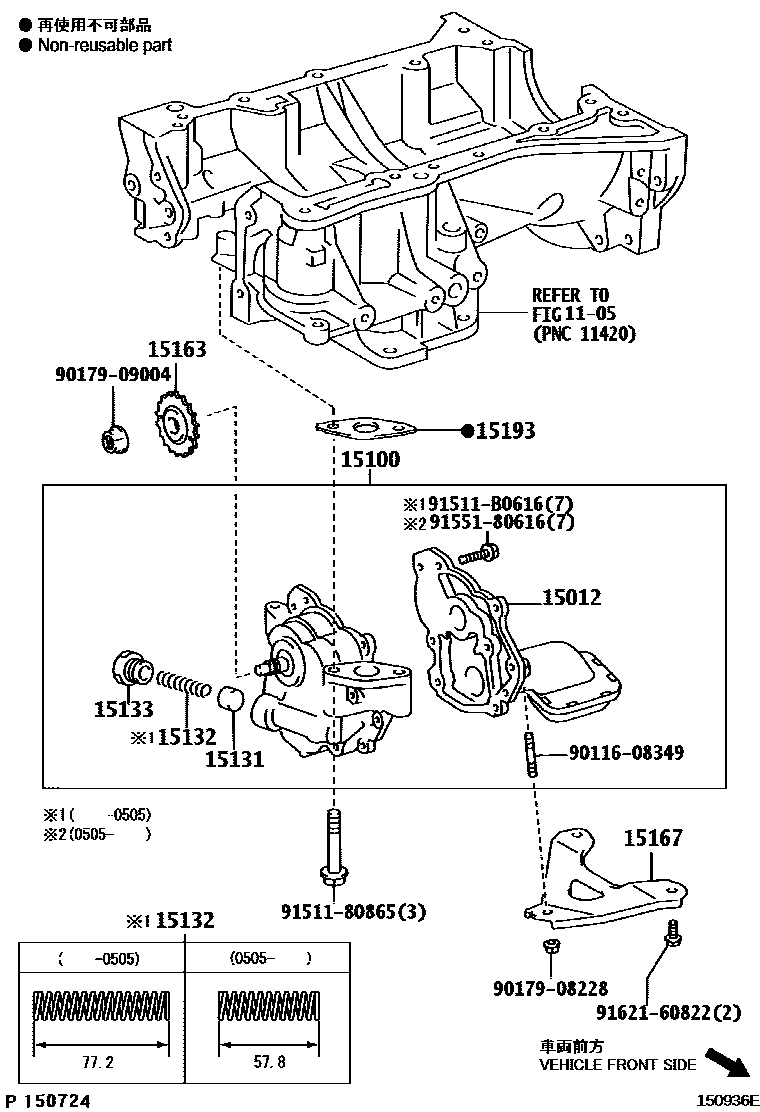

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15012COVER SUB-ASSY, OIL PUMP

15100PUMP ASSY, OIL

15131VALVE, OIL PUMP RELIEF

15132SPRING, OIL PUMP RELIEF VALVE

15133PLUG, OIL PUMP RELIEF VALVE

15163GEAR, OIL PUMP DRIVE SHAFT

15167BRACKET, OIL PUMP

15193GASKET, OIL PUMP

9011608349

9017908228

9017909004

9151180865

91511B0616

9155180616

9162160822

16 parts on this diagram · 3 diagrams in section

ENGINE OIL PUMP for Toyota 513120

This section contains 25 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota 513120. Key components include: CYLINDER BLOCK, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), STRAINER SUB-ASSY, OIL.
