Toyota 6725F0 — EXHAUST PIPE

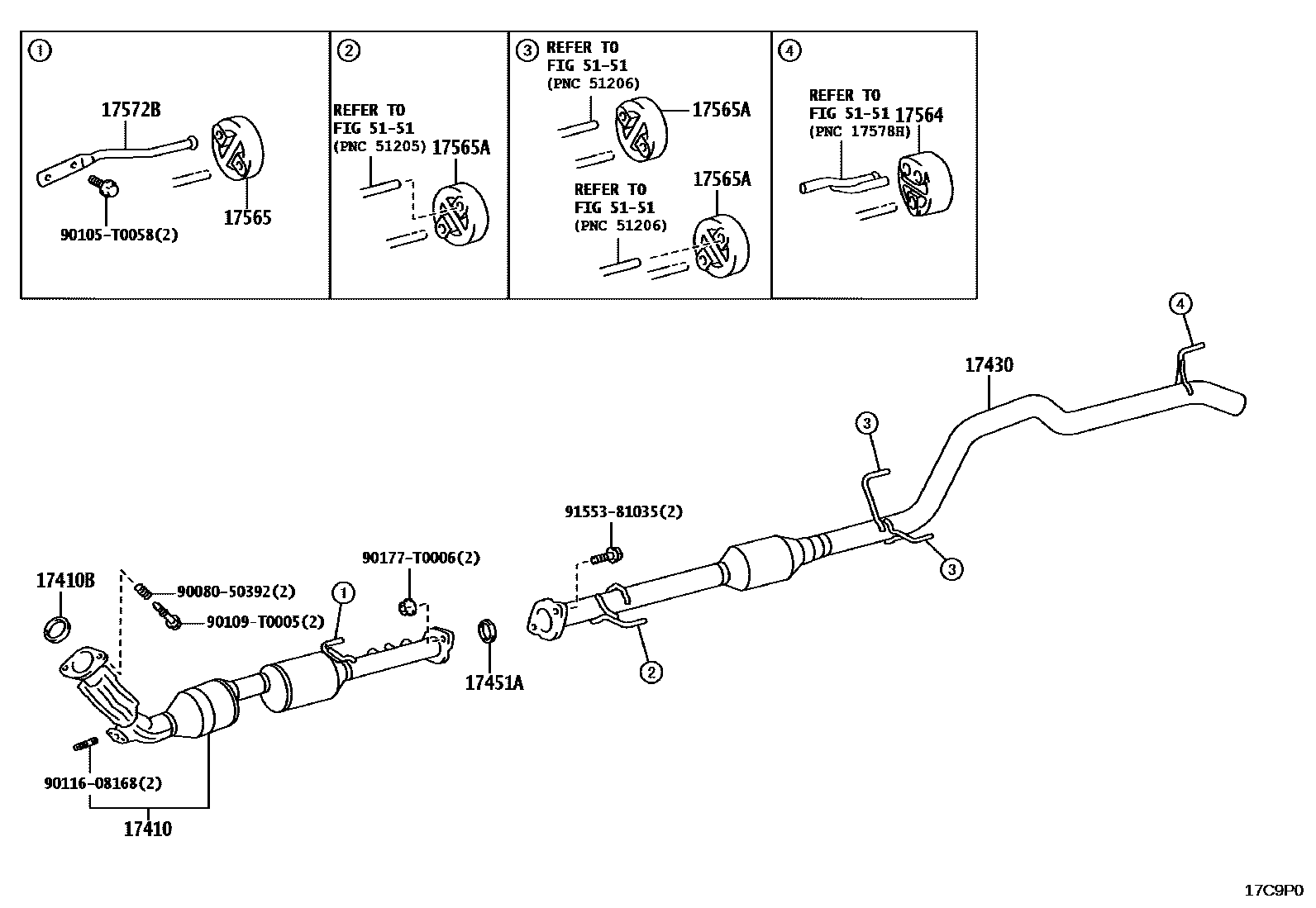

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17410BGASKET, EXHAUST PIPE

17430PIPE ASSY, EXHAUST, TAIL

17451AGASKET, EXHAUST PIPE, NO.2

17564SUPPORT,EXHAUST PIPE, NO.4

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

5151FRAME

→ Go to FIG 51-51

9008050392

90105T0058

90109T0005

9011608168

90177T0006

9155381035

15 parts on this diagram · 3 diagrams in section

EXHAUST PIPE for Toyota 6725F0

This section contains 16 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 6725F0. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, NO.2, SUPPORT,EXHAUST PIPE, NO.4.
