Toyota 6725F0 — ALTERNATOR

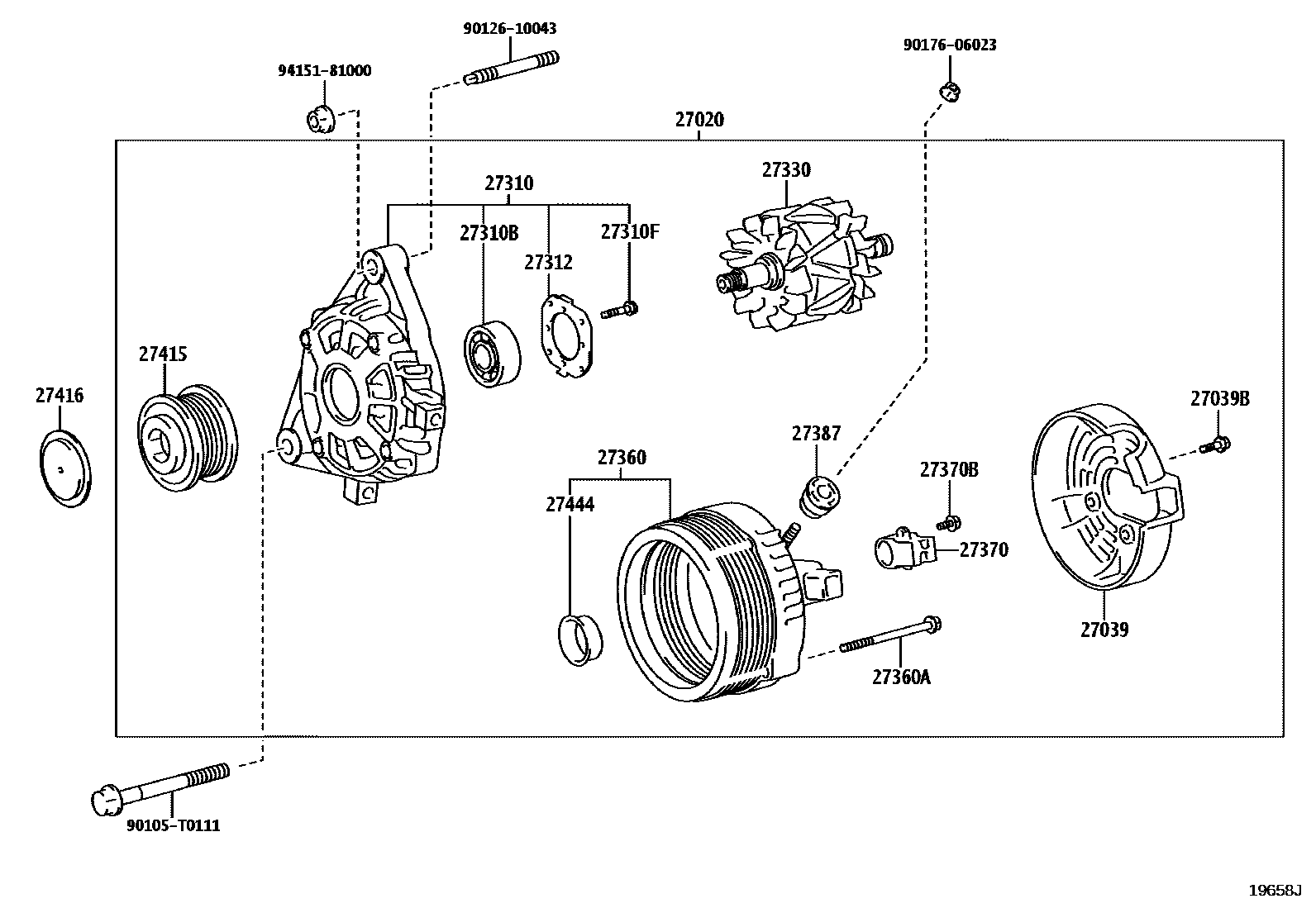

Parts diagram

27020ALTERNATOR ASSY

27039COVER, ALTERNATOR REAR END

27039BBOLT(FOR ALTERNATOR REAR END COVER)

27310FRAME ASSY, DRIVE END, ALTERNATOR

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

27312PLATE, RETAINER

27330ROTOR ASSY, ALTERNATOR

27360COIL ASSY, ALTERNATOR

27360ABOLT(FOR ALTERNATOR COIL)

27370HOLDER ASSY, ALTERNATOR BRUSH

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

27387INSULATOR, TERMINAL

27415PULLEY, ALTERNATOR W/CLUTCH

27416CAP, ALTERNATOR PULLEY

27444PACKING, ALTERNATOR BEARING COVER

90105T0111

9012610043

9017606023

9415181000

20 parts on this diagram · 3 diagrams in section

ALTERNATOR for Toyota 6725F0

This section contains 28 genuine Toyota parts for the ALTERNATOR system of the Toyota 6725F0. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, BOLT(FOR ALTERNATOR REAR END COVER), FRAME ASSY, DRIVE END, ALTERNATOR.
