Toyota 106310 — EXHAUST GAS RECIRCULATION SYSTEM
1701MANIFOLD
2211FUEL INJECTION SYSTEM
25610PIPE ASSY, EGR
25620EHOSE, WATER BY-PASS NO.2
25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)
25625BRACKET, EGR VALVE
25633GASKET, EGR VALVE
25634GASKET, EGR PIPE
25680COOLER ASSY, EGR
25685GASKET, EGR COOLER, NO.1
8202WIRING & CLAMP
8716HEATING & AIR CONDITIONING - WATER PIPING
21893B1030BUSH, CHOKE ROD BELLCRANK SHAFT
9004120352
9004177006
90119T0260
90119T0342

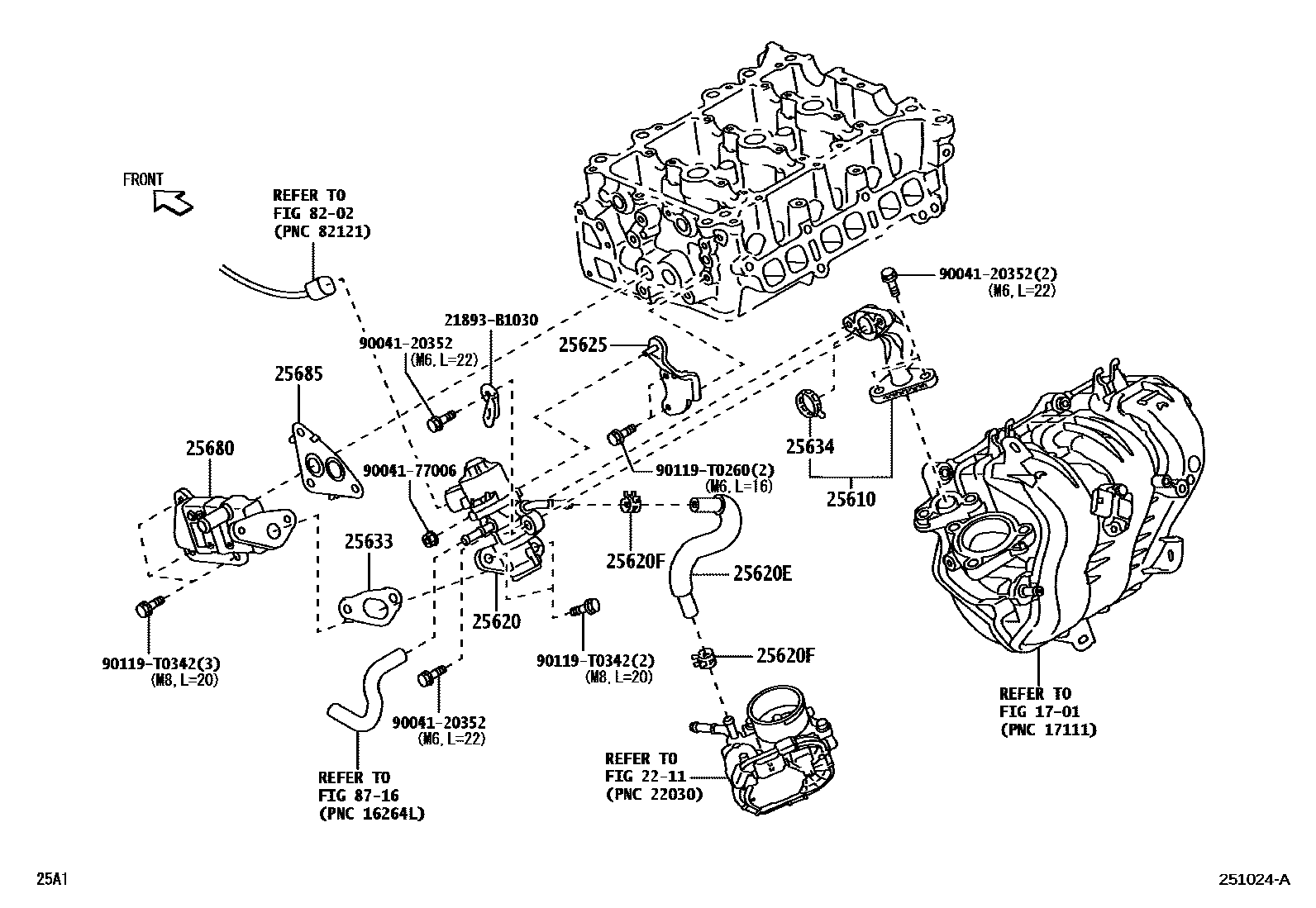

18 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota 106310
This section contains 18 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota 106310. Key components include: MANIFOLD, FUEL INJECTION SYSTEM, PIPE ASSY, EGR, VALVE ASSY, EGR, HOSE, WATER BY-PASS NO.2.
