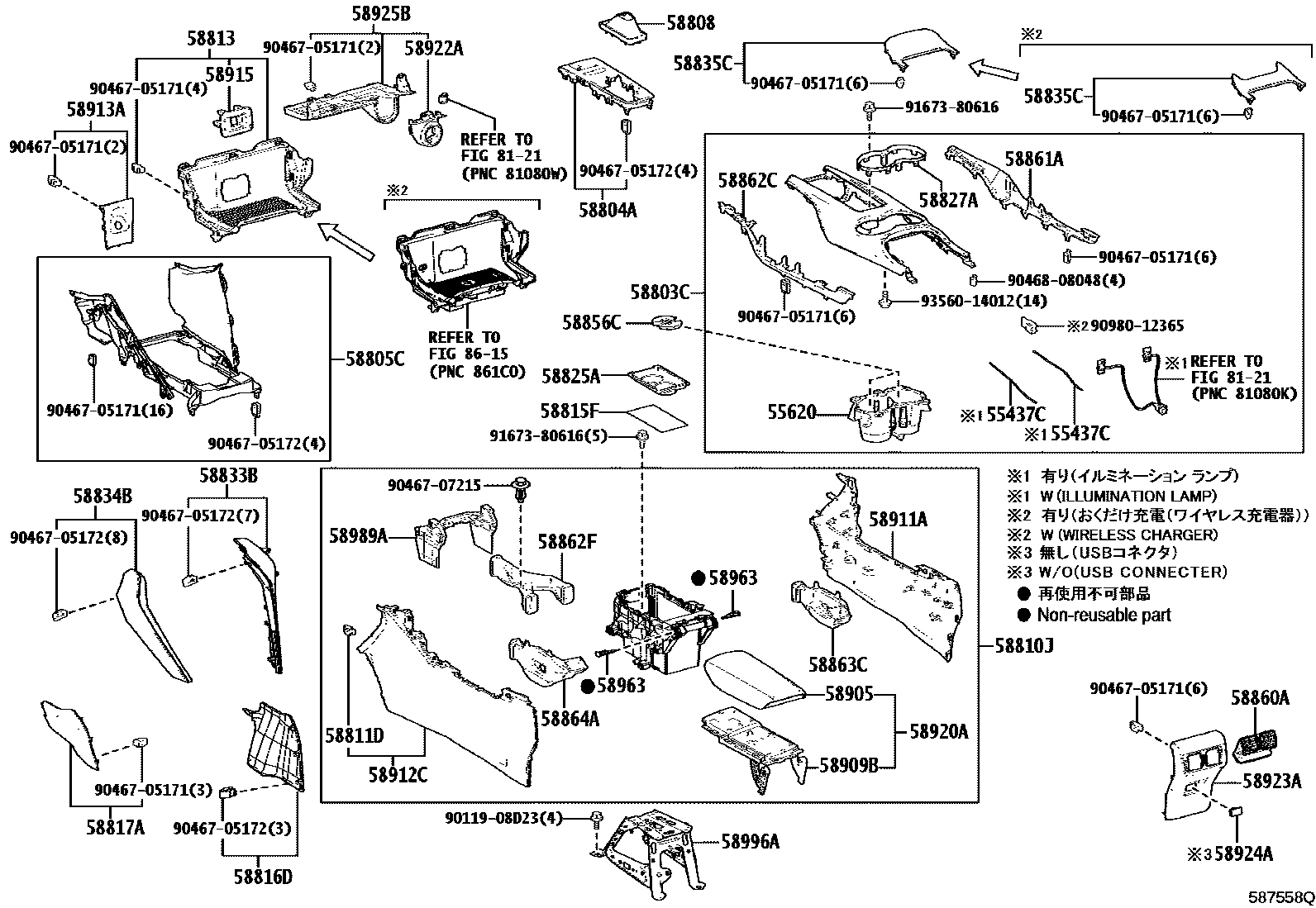

Toyota HARRIER 521 — CONSOLE BOX & BRACKET
55437CRETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
58810JBOX ASSY, CONSOLE
58811DCLIP(FOR CONSOLE BOX)
58815FCARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
58817AINSERT, CONSOLE BOX, FRONT NO.2
58825APOCKET, CONSOLE BOX
58827AGARNISH, CONSOLE BOX POCKET
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58835CORNAMENT, CONSOLE BOX
58856CHOLDER, CONSOLE
58860AREGISTER ASSY, CONSOLE BOX
58861ASUPPORT, CONSOLE BOX, NO.1
58862CSUPPORT, CONSOLE BOX, NO.2
58862FDUCT, CONSOLE BOX, NO.2
58863CDUCT, CONSOLE BOX, NO.3
58864ASUPPORT, CONSOLE BOX, NO.4
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT
58911APANEL, BOX SIDE, NO.1
58912CPANEL, BOX SIDE, NO.2
58913APANEL, BOX, NO.3
58920AARMREST ASSY, REAR CONSOLE
58922APLATE, BOX, UPPER NO.2
58923APANEL, CONSOLE REAR END
58924APANEL, CONSOLE REAR END, NO.2
58925BINSULATOR, CONSOLE BOX, UPPER
58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58989ARETAINER, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121INTERIOR LAMP
8615TELEPHONE & MAYDAY
9011908D23
9046705171
9046705172
9046707215
9046808048
9098012365
9167380616
9356014012
48 parts on this diagram · 3 diagrams in section
CONSOLE BOX & BRACKET for Toyota HARRIER 521
This section contains 48 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HARRIER 521. Key components include: RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1, HOLDER ASSY, INSTRUMENT PANEL CUP, BOX SUB-ASSY, CONSOLE CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR.
