Toyota 6715C0 — HEATING & AIR CONDITIONING - COOLER PIPING

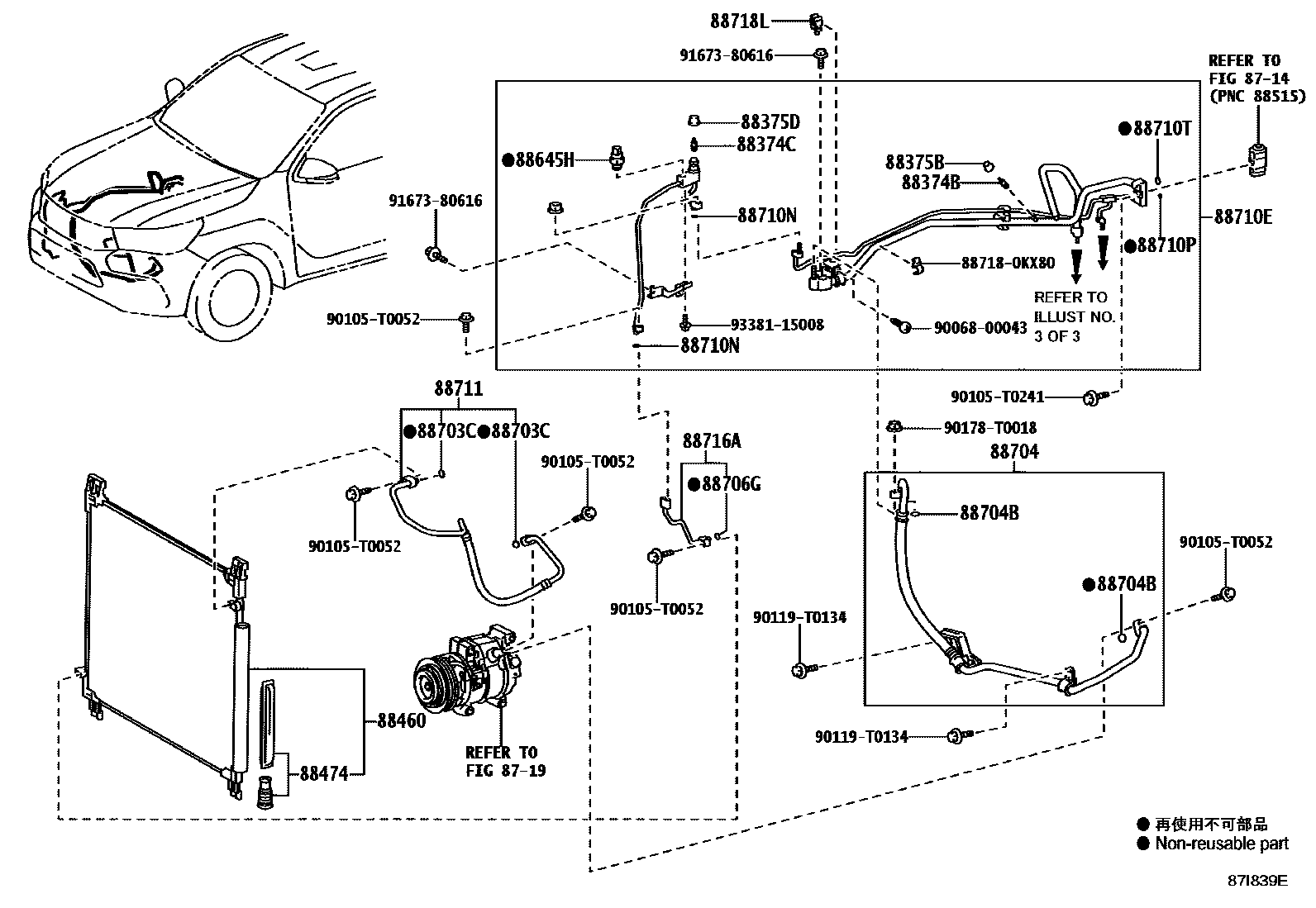

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

88374CVALVE, SERVICE, NO.2

88375BCAP, SERVICE VALVE, NO.1

88375DCAP, SERVICE VALVE, NO.2

88460CONDENSER ASSY, COOLER

88474DRYER, COOLER

88645HSWITCH, PRESSURE NO.1

88703CRING, O(FOR DISCHARGE HOSE)

88704HOSE SUB-ASSY, SUCTION

88704BRING, O(FOR SUCTION HOSE)

88706GRING, O(FOR LIQUID TUBE)

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88716APIPE, COOLER REFRIGERANT LIQUID, A

88718LCLAMP, PIPING

887180KX80PIPE, COOLER REFRIGERANT SUCTION, NO.2

9006800043

90105T0052

90105T0241

90119T0134

90178T0018

9167380616

9338115008

28 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota 6715C0

This section contains 49 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota 6715C0. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, VALVE, SERVICE, NO.1, VALVE, SERVICE, NO.2, CAP, SERVICE VALVE, NO.1.
