Toyota FJ CRUISER 663 — WATER PUMP

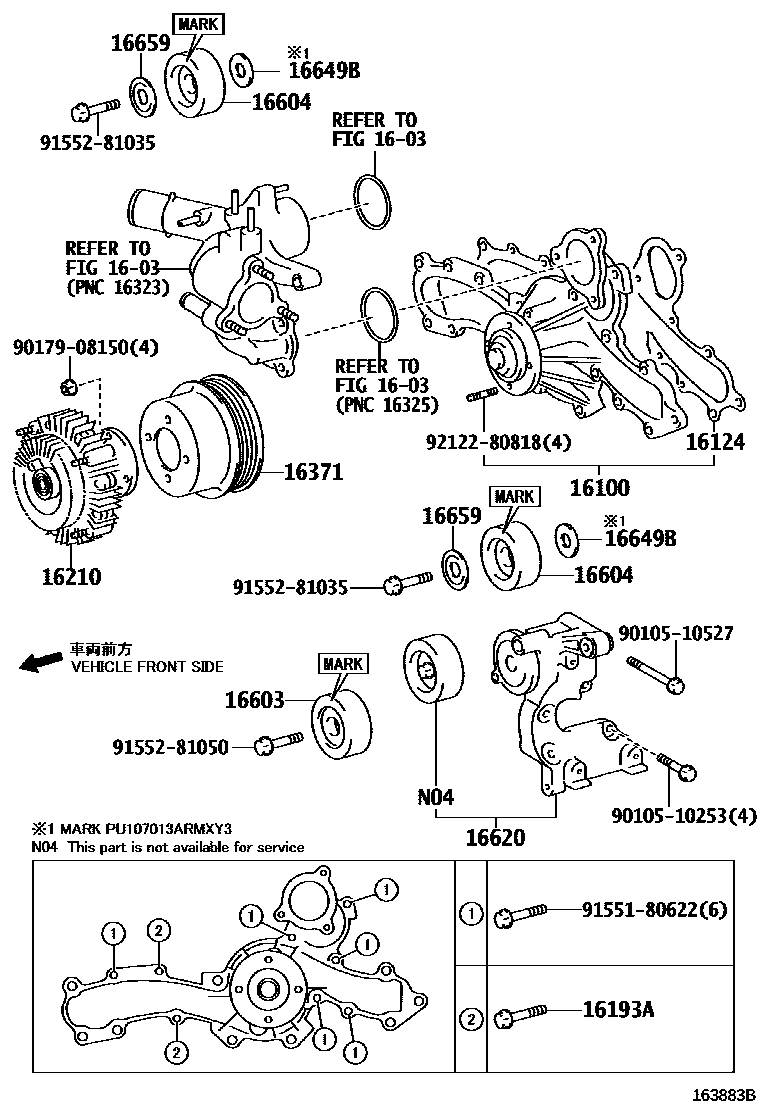

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

16124GASKET, WATER PUMP COVER

16193ABOLT(FOR WATER PUMP COVER)

16210COUPLING ASSY, FLUID

16371PULLEY, FAN

16603PULLEY SUB-ASSY, IDLER, NO.1

16604PULLEY SUB-ASSY, IDLER, NO.2

16620TENSIONER ASSY, V-RIBBED BELT

16649BPLATE, IDLER PULLEY COVER

16659PLATE, IDLER PULLEY COVER, NO.2

9010510253

9010510527

9017908150

9155180622

9155281035

9155281050

9212280818

18 parts on this diagram · 3 diagrams in section

WATER PUMP for Toyota FJ CRUISER 663

This section contains 21 genuine Toyota parts for the WATER PUMP system of the Toyota FJ CRUISER 663. Key components include: RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP COVER, BOLT(FOR WATER PUMP COVER), COUPLING ASSY, FLUID.
