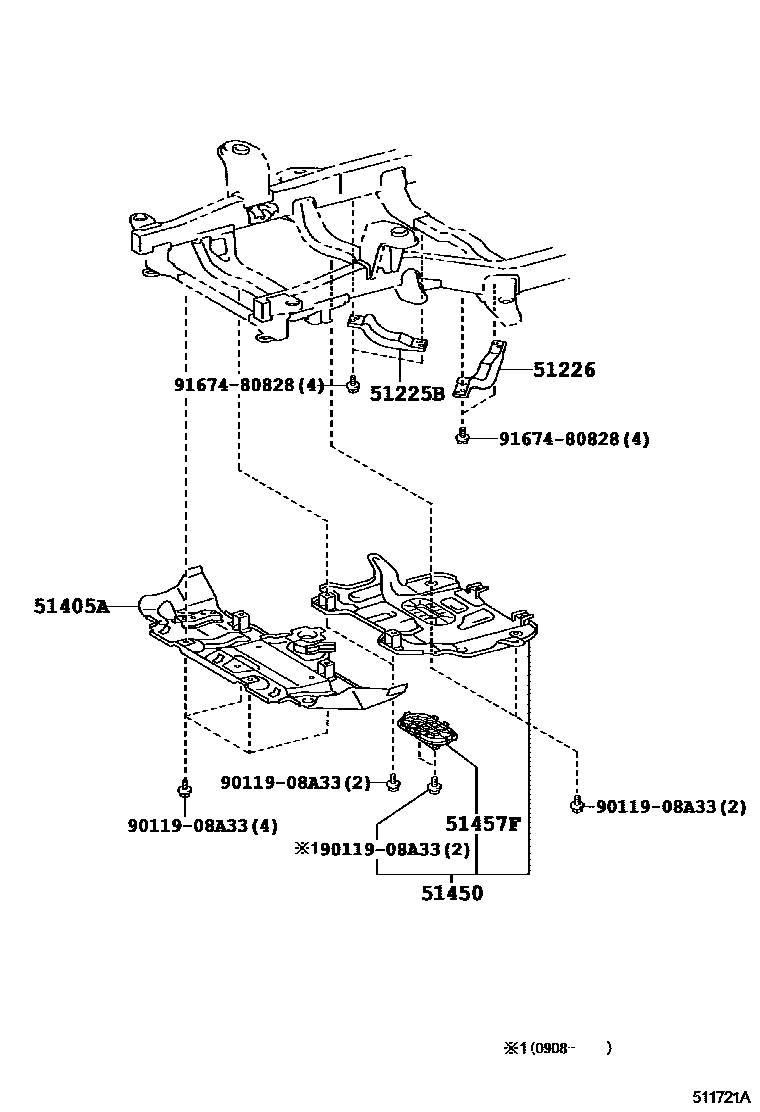

Toyota FJ CRUISER 663 — SUSPENSION CROSSMEMBER & UNDER COVER

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

51226BRACKET, FRONT SUSPENSION MEMBER, LH

51226-35060

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

51450COVER ASSY, ENGINE UNDER, REAR

51450-35010

51450-60050

51457FSEAL, ENGINE UNDER COVER

9011908A33

90119-08A33

9167480828

91674-80828

7 parts on this diagram · 1 diagram in section

SUSPENSION CROSSMEMBER & UNDER COVER for Toyota FJ CRUISER 663

This section contains 7 genuine Toyota parts for the SUSPENSION CROSSMEMBER & UNDER COVER system of the Toyota FJ CRUISER 663. Key components include: BRACKET, FRONT SUSPENSION MEMBER, RH, BRACKET, FRONT SUSPENSION MEMBER, LH, COVER SUB-ASSY, ENGINE UNDER, NO.1, COVER ASSY, ENGINE UNDER, REAR, SEAL, ENGINE UNDER COVER.
