Toyota FJ CRUISER 663 — SPARE WHEEL CARRIER

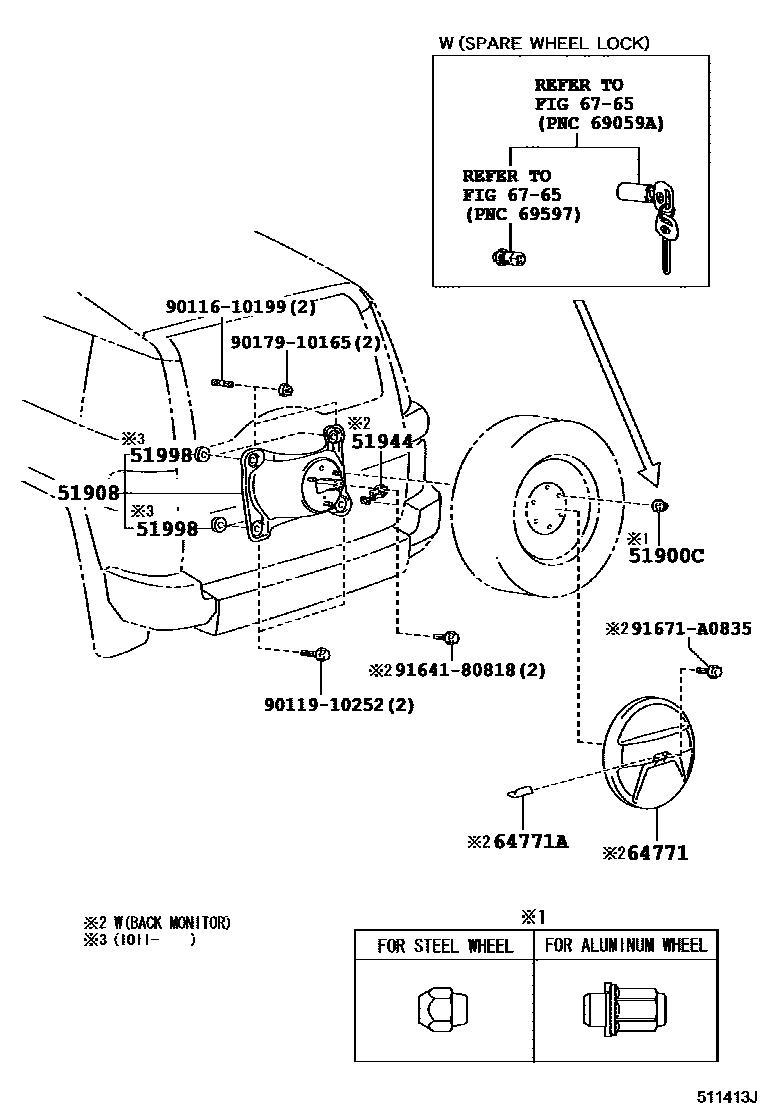

Parts diagram
51900CNUT, SPARE WHEEL, HUB
51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-35030
51908-35031
51908-35032
51908-35040
51944BRACKET, SPARE WHEEL CARRIER, NO.2
51944-35040
51998PAD, SPARE WHEEL BRACKET
51998-35020
64771COVER, SPARE WHEEL
64773-35010
64773-35011
64773-35012
64773-35020
64771-35030
64771-35031
64771-35032
64771-35040
64771ACOVER, SPARE WHEEL
6765LOCK CYLINDER SET
→ Go to FIG 67-65
9011610199
90116-10199
9011910252
90119-10252
9017910165
90179-10165
9164180818
91641-80818
91671A0835
91671-A0835

12 parts on this diagram · 1 diagram in section

SPARE WHEEL CARRIER for Toyota FJ CRUISER 663

This section contains 12 genuine Toyota parts for the SPARE WHEEL CARRIER system of the Toyota FJ CRUISER 663. Key components include: NUT, SPARE WHEEL, HUB, BRACKET SUB-ASSY, SPARE WHEEL CARRIER, BRACKET, SPARE WHEEL CARRIER, NO.2, PAD, SPARE WHEEL BRACKET, COVER, SPARE WHEEL.
